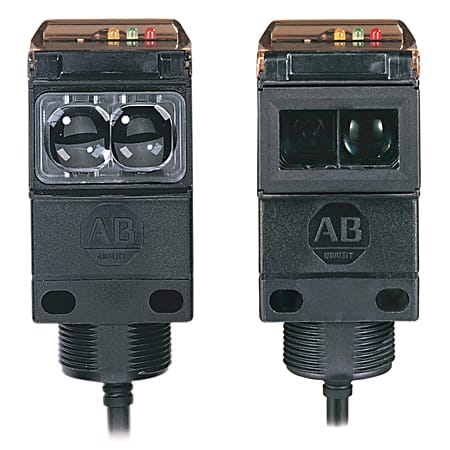

Series 9000 General Purpose Sensor
Produktnummer: 42GRL-9003-QD2
Produktstatus:
inkl. mva.
Series 9000, GP Sensor, Standard ON/OFF, SR Transmitted Beam Source, AC/DC- MOSFET, Custom Configuration 1
| Spesifikasjoner | |
|---|---|
| Model Selection Information | Selection for Series 9000 Diagnostic |
| Connection Type | 4-pin DC Micro (M12) QD |
| Output Energized | LO or DO selectable |
| Maximum Sensing Distance | Depends On Fiber Optic |
| Operating Voltage / Output Type | 45-264V DC / 40-264V AC, Solid State Isolated N.O. |
| Sensing Mode | Transmitted Beam |
| Receiver | Transmitted Beam Receiver is not selected |
| Lengde | 16.637 |
| Høyde | 6.096 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 42g-in003_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
Dimension Drawing (PDF) Filnavn: ABGCA920.pdf Filtype: application/pdf |
Last ned | |
|
Photo Filnavn: PHEL9KDG_PH.jpg Filtype: image/png |
Last ned | |
|
Dimension Drawing (DXF) Filnavn: ABGCA920.dxf Filtype: image/vnd.dxf |
Last ned |
