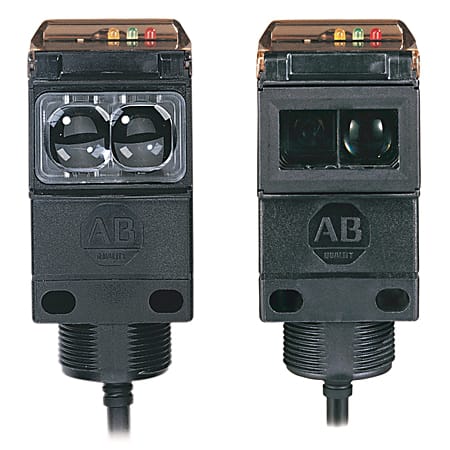

Series 9000 General Purpose Sensor
Produktnummer: 42GRL-9002-QD
Produktstatus:
inkl. mva.
Photoelectric Sensor, 9000 Series, SR Transmitted Beam Source, StandardON/OFF, AC/DC - SPDT Relay , 4-Pin Mini QD
Egenskaper for produkt/familie
- 80;889N-F5AF-12F
| Spesifikasjoner | |
|---|---|
| Operating Voltage / Output Type | 10-264V AC/DC |
| Connection Type | Mini Quick-Disconnect |
| Sensing Mode | Transmitted Beam |
| Output Energized | Light Source |
| Maximum Sensing Distance | 61m (200ft) |
| Receiver | Transmitted Beam Receiver is not selected |
| Connection Media | Mini/Mini Plus, Female, Straight, 5-Pin, PVC Cable, Yellow, Unshielded, 12 feet (3.66 meters) |
| Sensing Range | 61m (200ft) |
| Model Selection Information | Selection for Series 9000 Diagnostic |
| Lengde | 16.891 |
| Høyde | 5.461 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 42g-in003_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
Dimension Drawing (PDF) Filnavn: ABGCA920.pdf Filtype: application/pdf |
Last ned | |
|
Photo Filnavn: PHEL9KDG_PH.jpg Filtype: image/png |
Last ned | |
|
Dimension Drawing (DXF) Filnavn: ABGCA920.dxf Filtype: image/vnd.dxf |
Last ned |
