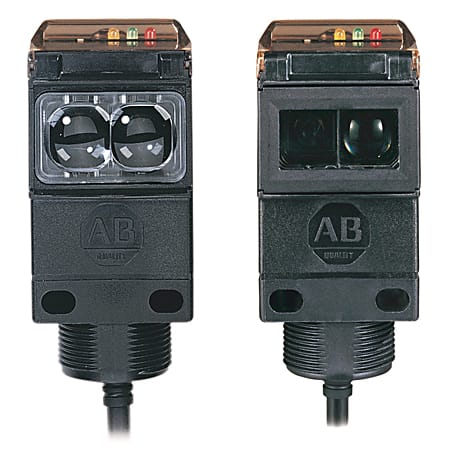

Series 9000 General Purpose Sensor
Produktnummer: 42GRL-9040-QD10
Produktstatus:
inkl. mva.
Series 9000, Photoelectric Sensor, 42G, Transmitted Beam Emitter, Infrared LED, 152 m Sensing Range, Custom Connection
| Spesifikasjoner | |
|---|---|
| Receiver | Transmitted Beam Receiver is not selected |
| Sensing Mode | Transmitted Beam |
| Connection Type | 4-pin DC Micro (M12) QD |
| Output Energized | LO or DO selectable |
| Operating Voltage / Output Type | 10-30V DC, NPN/PNP Transistor |
| Maximum Sensing Distance | Depends On Fiber Optic |
| Model Selection Information | Selection for Series 9000 Diagnostic |
| Lengde | 26.035 |
| Høyde | 10.795 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 42g-in003_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
Dimension Drawing (PDF) Filnavn: ABGCA920.pdf Filtype: application/pdf |
Last ned | |
|
Dimension Drawing (DXF) Filnavn: ABGCA920.dxf Filtype: image/vnd.dxf |
Last ned | |
|
Photo Filnavn: PHEL9KDG_PH.jpg Filtype: image/png |
Last ned |
