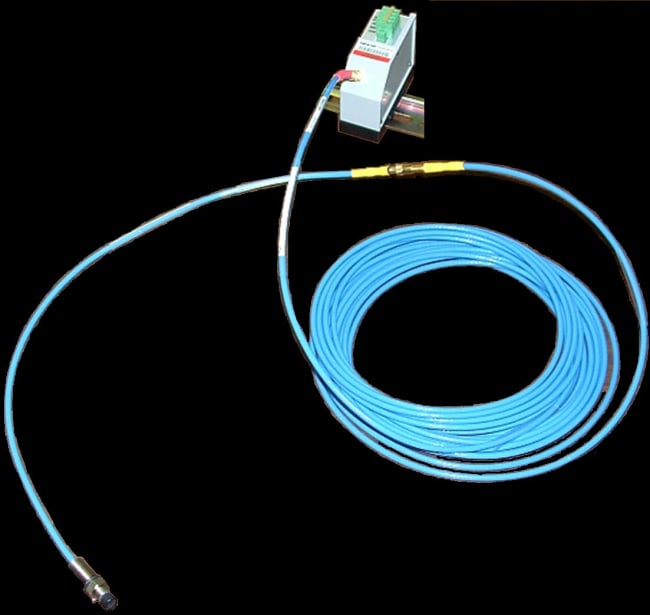

Series 1442 Extension Cable
Produktnummer: 1442-EC-5840A
Produktstatus:
inkl. mva.
Eddy Current Probe Extension Cable, 4.0 Meter, Armored
Eddy Current Probe Extension Cable, 4.0 Meter, Armored
Egenskaper for produkt/familie
- Fully API-670 compliant
- Offers frequency response from DC to 10 Hz (-3 dB)
- Offers sensor tip diameters from 5...50 mm (0.20...1.97 in.)
- Includes color-coding to assure appropriately matched probes, extension cables, and drivers
- Suitable for vibration, speed/acceleration, rotor/position, and differential expansion measurements
- Offers non-contact pick-up probe, extension cable, and driver system
| Spesifikasjoner | |
|---|---|
| Sub Brand | 1442 Series |
| Type | 4 m ECP Extension Cable |
| Special Features | color coded for 5m sys length |
| Application | vibratn, spd, thrst, diff exp |
| Probe Tip Diameter | 5 & 8 mm |
| Cable Length | 4 m |
| Cable Armor | Yes |
| Extension Cables | Eddy Current Probe Extension Cable, 4.0 Meter, Armored |
| Opprinnelsesland | JP |
| Tolltariffnummer | 85442000 |
| Lengde | 20.599 |
| Høyde | 23.19 |
| Livssyklus | Active |
