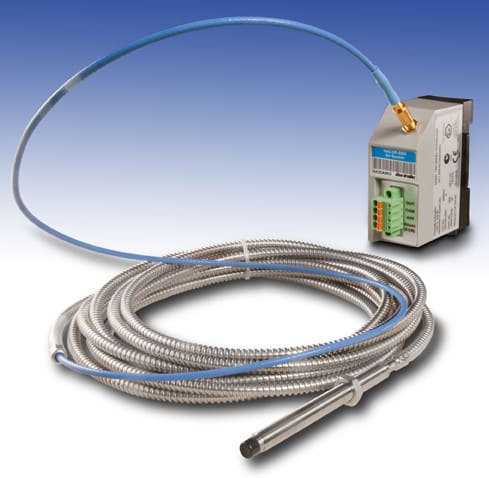

Series 1442 8 mm Tip Pick-Up Probe

Produktnummer: 1442-PS-0850E0010A
Produktstatus:


inkl. mva.

1442 Eddy Current Probe, Standard Mount Probe, 8 mm / 2 mm (80 mils) probe diameter, 5.0 inches body length, 1 Meter cable length, Armored Cable

1442 Eddy Current Probe, Standard Mount Probe, 8 mm probe diameter, 5.0 inches body length, 1 Meter cable length, Armored Cable

Egenskaper for produkt/familie

  • Fully API-670 compliant
  • Offers sensor tip diameters from 5...50 mm (0.20...1.97 in.)
  • Includes color-coding to assure appropriately matched probes, extension cables, and drivers
  • Offers frequency response from DC to 10 Hz (-3 dB)
  • Offers non-contact pick-up probe, extension cable, and driver system
  • Suitable for vibration, speed/acceleration, rotor/position, and differential expansion measurements
Spesifikasjoner
System Length 5 m
Body Length 5.0 inches
Probe Diameter/Range 8 mm / 2 mm (80 mils)
Probe Type Standard Mount Probe
Cable Length 1 Meter
Unthreaded Length Standard mount probes with a specified unthreaded length are not available.
Armored Cable Option Armored Cable
Thread English UNF threads 3/8-24 thread
Opprinnelsesland JP
Tolltariffnummer 90319000
Lengde 19.812
Høyde 23.19
Livssyklus Active
