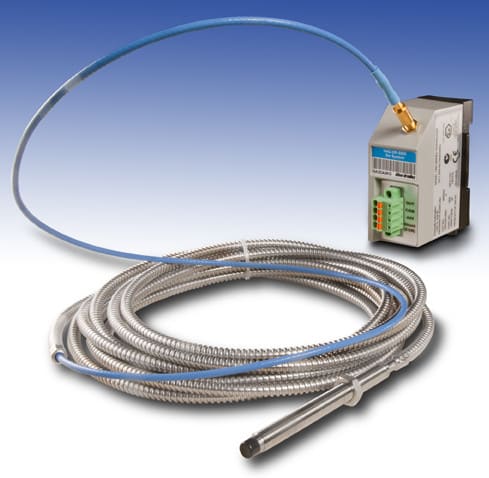

Series 1442 8 mm Tip Pick-Up Probe

Produktnummer: 1442-PS-0812M0010N
Produktstatus:


inkl. mva.

1442 Eddy Current Probe, Standard Mount Probe, 8 mm / 2 mm (80 mils) probe diameter, 120 mm body length, 1 Meter cable length, No Armor

Pick-Up Probe, Non-Contact, 8 mm Tip, M10X1 Thread, 120 in. Body Length, Integral Cable, 1 m Cable Length

Egenskaper for produkt/familie

  • Suitable for vibration, speed/acceleration, rotor/position, and differential expansion measurements
  • Includes color-coding to assure appropriately matched probes, extension cables, and drivers
  • Offers frequency response from DC to 10 Hz (-3 dB)
  • Fully API-670 compliant
  • Offers non-contact pick-up probe, extension cable, and driver system
  • Offers sensor tip diameters from 5...50 mm (0.20...1.97 in.)
Spesifikasjoner
Thread Metric M10x1 thread
Body Length 120 mm
System Length 5 m
Probe Type Standard Mount Probe
Armored Cable Option No Armor
Unthreaded Length Standard mount probes with a specified unthreaded length are not available.
Cable Length 1 Meter
Probe Diameter/Range 8 mm / 2 mm (80 mils)
Opprinnelsesland JP
Tolltariffnummer 90319000
Lengde 17.501
Høyde 21.996
Livssyklus Active
