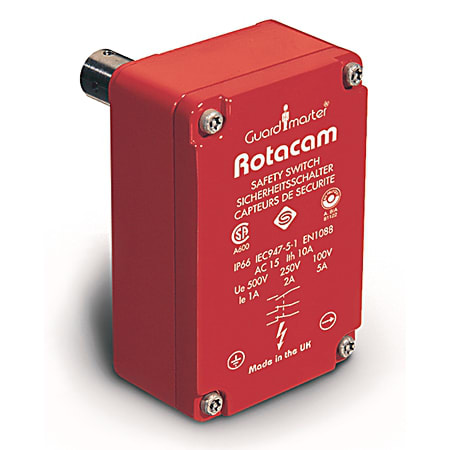

Rotacam Heavy-duty Hinge Interlock

Produktnummer: 440H-R03079
Produktstatus:


inkl. mva.

Hinge Switch - Rotacam: Contacts: (Safety/Aux) 2 Normally Closed / 1 Normally Open, BBM Preference: Break Before Make, Actuator Shaft: Length: 85MM Diameter: 12.7MM-Solid, Conduit Entry: M20 Conduit

Hinge Switch, Rotacam, No Special Features, 2 N.C. Safety, 1 N.O Aux, 2 N.C. Safety Contacts, Break Before Make, 1 N.O. Auxillary Contact, Solid Hinge Shaft 85mmx12.7mm, M20 Conduit, Hinge Switch, Die Cast Alloy (red)

Egenskaper for produkt/familie

  • Suitable as a hinge pin on light- and medium weight guard doors
  • Isolates power within 5° of door movement
  • Two N.C. and 1 N.O. contacts (sealed to IP66)
  • Cam-adjustable degree of operation
  • Robust die-cast case
Spesifikasjoner
Mechanical Life 1,000,000 Operations
Pressure Range 2 to 8 Bars
Temperature 10 to 60 degrees C (50 to 140 degrees F)
Standard IEC 60947-5-1, ISO 14119, ISOTR 12100
Flow Rate 138 NL/min.
Pneumatic Fluid Compressed air or neutral gas
Connection Type Push in fittings for standard 4 mm diameter nylon tube, internal diameter 2.5 mm
Conduit Entry / Connection Type M20 Conduit
BBM or MBB Break Before Make
Actuator Shaft Length: 85MM Diameter: 12.7MM
Shaft Type Solid
Contacts (Safety/Auxiliary) 2 Normally Closed / 1 Normally Open
Product Family Rotacam
Opprinnelsesland PL
Tolltariffnummer 85365080
Lengde 18.4
Høyde 8.4
Livssyklus Active
