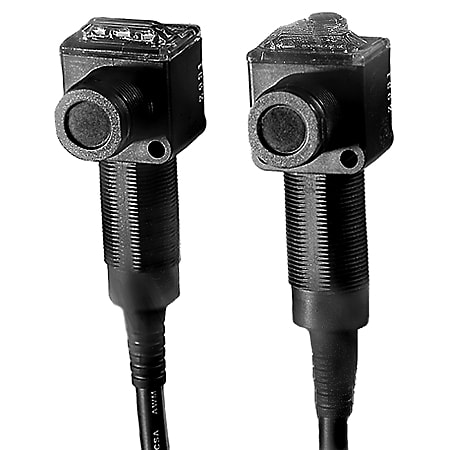

RightSound Ultrasonic Sensor Emitter

Produktnummer: 873E-EDZZ0750A2
Produktstatus:


inkl. mva.

RightSound Ultrasonic Sensor, Emitter, 2 M PVC Cable

Egenskaper for produkt/familie

  • Highly immune to ambient sonic and electrical noise
  • Applications include:
  • 1200 psi washdown, NEMA 4X, 6P and IP67 water ingress standards
  • NPN (sinking) and PNP (sourcing) outputs
  • Short circuit, overload, false pulse, transient noise and reverse polarity protection
  • Highly visible 360° status indicators
  • Output logic switchable via polarity of receiver power wiring
Spesifikasjoner
Size 18mm
Connection 2-meter (6.5ft) PVC cable
Model Bulletin 873E RightSound 18mm Right Angle
Sensing Distance 50mm to 750mm
Output NPN/PNP (NO or NC)
Enclosure Plastic
Sensing Range 50mm to 750mm
Termination Type 2-meter (6.5ft) PVC cable
Output Configuration NPN/PNP (NO or NC)
Barrel Diameter 18mm
Sensing Mode Transmitted Beam Emitter
Family Style Bulletin 873E RightSound 18mm Right Angle
Lengde 17.805
Høyde 17.805
Livssyklus Active
