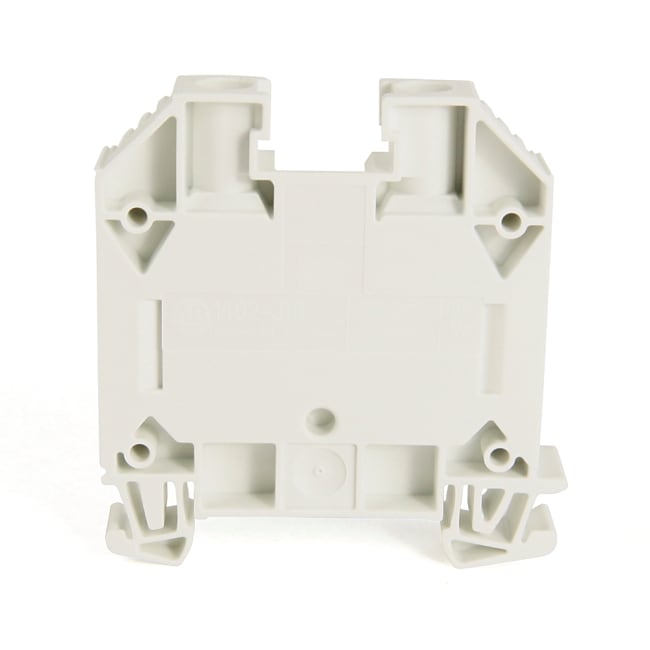

Rekkeklemme 16mm2 skru grå
SKU: 1492-J16
Product status:
incl. VAT
1492-J IEC Terminal Block, One-Circuit Feed-Through Block, 16 mm (# 14 AWG - # 4 AWG), Standard Feedthrough, Gray (Standard),
Terminal Block, Screw Connection, Feed Through, 12 x 60 x 56mm (0.472 x 2.36 x 2.2 in), 1 Pole, Gray, Pkg. Qty. of 50, VOLTAGERATING UR - 600V AC/DC, CSA - 600V AC/DC, IEC - 1000V AC/DC, ATEX - 690V AC/DC, MAXIMUM CURRENT RATING UR - 85A, CSA - 85A, IE
Properties for product/family
- Easy installation or removal from both sides of DIN Rail
- Counter-sinking of clamping screws
- Wide range of accessories available
- Backed-out screws
- Compatible with several high visibility snap-in marker cards
- Finger-safe housing
- Tin-plated terminal and zinc chromate steel screws
- Four-sided funnel wire guides
- Self-locking screw type clamp design
- Copper current bar and tin-plated surface
| Specifications | |
|---|---|
| Special Features | Standard Feedthrough |
| Base Block Style | Standard Feed-Through Blocks |
| Base Block Type | One-Circuit Feed-Through Block |
| Features | Standard Feedthrough |
| Maximum Wire Size & Rating | UL: 14-6 AWG (85A @600V AC/DC) CSA: 14-6 AWG (85A @600V AC/DC) IEC: 16mm² (76A @1000V AC/DC) EEx e II: 16mm²/16-6 AWG (66A @ 750V AC/DC) |
| Color | Gray (Standard) |
| Opprinnelsesland | DE |
| Tolltariffnummer | 85369095 |
| Lengde | 0.61 |
| Høyde | 7.188 |
| Livssyklus | Active |
| Data sheet | ||
|---|---|---|
|
Spec Sheet File name: 1492-td015_-en-p.pdf File type: application/pdf |
Download |
| Downloads | ||
|---|---|---|
|
3D STEP (STP) Model File name: en-US File type: application/x-zip-compressed |
Download | |
|
Wire Size [AWG] Table File name: en-US File type: application/pdf |
Download | |
|
Specifications File name: en-US File type: application/pdf |
Download |
