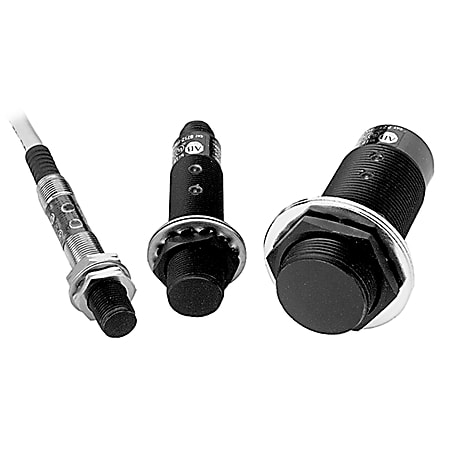

PTFE Coated Inductive Sensor
Produktnummer: 871Z-BW4C12-R3
Produktstatus:
inkl. mva.
Inductive Sensor, PTFE Coated, WFI, 12 mm Barrel Diameter, AC/DC, 4 mm Sensing Distance, Normally Closed, AC Micro Quick Disconnect
Egenskaper for produkt/familie
- Micro quick-disconnect
- Normally open output
- Equal sensing for all metals
- Weld field immunity
- Weld-slag resistant PTFE-coated brass barrel and face
- PTFE-coated brass barrel
- Short circuit, false pulse, overload, and transient noise protection
- Applications include:
- Reverse polarity, short circuit, overload, false pulse and transient noise protection
| Spesifikasjoner | |
|---|---|
| Output | N.C. |
| Voltage Rating | 20 - 250V AC/DC |
| Output Configuration | N.C. |
| Nominal Sensing Distance | 4mm |
| Barrel Diameter | 12mm |
| Connection Type | Micro Quick-Disconnect (AC) |
| Proximity Sensor Type | 2-Wire AC/DC Weld Field Immune |
| Shielding | Unshielded |
| Lengde | 19.431 |
| Høyde | 2.286 |
| Livssyklus | Active |
