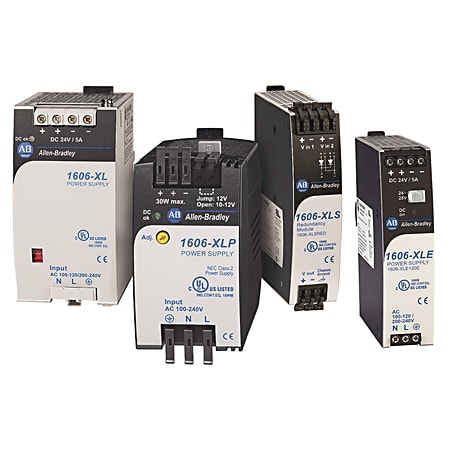

POWER ATEX 480W/20A-24VDC.100-240VAC

Produktnummer: 1606-XLS480EA
Produktstatus:


inkl. mva.

1606-XLS480EA: Performance Power Supply, 24-28V DC, 480 W, 120/240V AC / 110-300V DC Input Voltage

Power Supply, Bulletin 1606 XLS Performance, 100-240VAC or 110-150VDC Input, 24-28VDC Output, 480Watt, 20A Output, ParallelOperation, DC OK Relay, ATEX Rating

Egenskaper for produkt/familie

  • Provides redundancy modules for managing dual power supplies for back-up power
  • Features 150% power boost to handles start-up loads
  • Offers small size for panel space savings
  • Provides buffer modules for a short boost function, buffering load currents during typical main faults, switching events, or load peaks
  • Includes multiple single and three-phase inputs for global applications
Spesifikasjoner
Please Note Input Specs
Product Functionality Power Supply
Type Power Supply
Output Voltage 24...28
Output Power [W] 480
Output Current [A] 20
Special Features Performance Family
Would you like so see selection Tips? Yes
Family Performance Family
Product Selection 1606-XLS480EA: Performance Power Supply, 24-28V DC, 480 W, 120/240V AC / 110-300V DC Input Voltage
Opprinnelsesland CZ
Tolltariffnummer 85044082
Lengde 18.212
Høyde 15.392
Livssyklus Active
