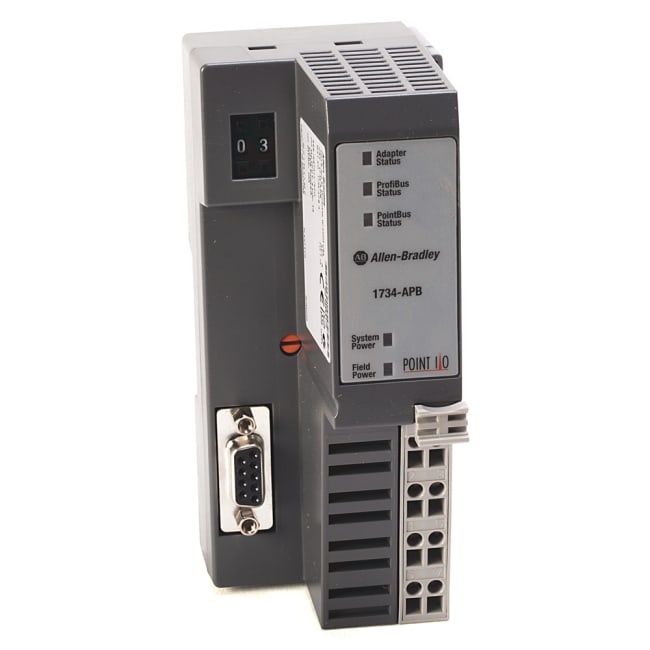

POINT I/O Profibus-DP Network Adapter
Produktnummer: 1734-APB
Produktstatus:
inkl. mva.
Point Profibus W/24Vdc Ps
Network Adapter, POINT I/O, ProfiBus DP, 63 Module Capacity on POINTBus, 400ma @24VDC, Open Style, DIN Mounted
Egenskaper for produkt/familie
- Available with conformal coating
- Modules slide together for easy install and uninstall for easier maintenance
- Configurable modules
- Removable wiring system saves time and money during installation and troubleshooting
- Mount horizontally or vertically, with no de-rating required
- Auto Device Replacement (ADR) reduces downtime
- Removal and Insertion Under Power (RIUP) lets you replace modules while the system is in operation
- Add-on-Profiles in the Studio 5000 Logix Designer® application provide smooth integration into Integrated Architecture systems
- Modular design lets you independently select the I/O, termination style, and network interface
- Comprehensive diagnostics and configurable features makes POINT I/O™ easy to apply
| Spesifikasjoner | |
|---|---|
| Sub Brand | POINT |
| Type | Adapter |
| Special Features | Standard |
| Application | In-Cabinet |
| Communication Protocol | Profibus DP |
| Power Supply | 24V DC |
| Mounting | Din-rail |
| Enclosure | None (open-style) |
| Temperature Rating | -20...55 °C (-4...131 °F) |
| I/O Adapter and Communication Interface Modules | Point Profibus W/24Vdc Ps |
| Opprinnelsesland | SG |
| Tolltariffnummer | 85176200 |
| Lengde | 14.808 |
| Høyde | 6.299 |
| Livssyklus | Active |
