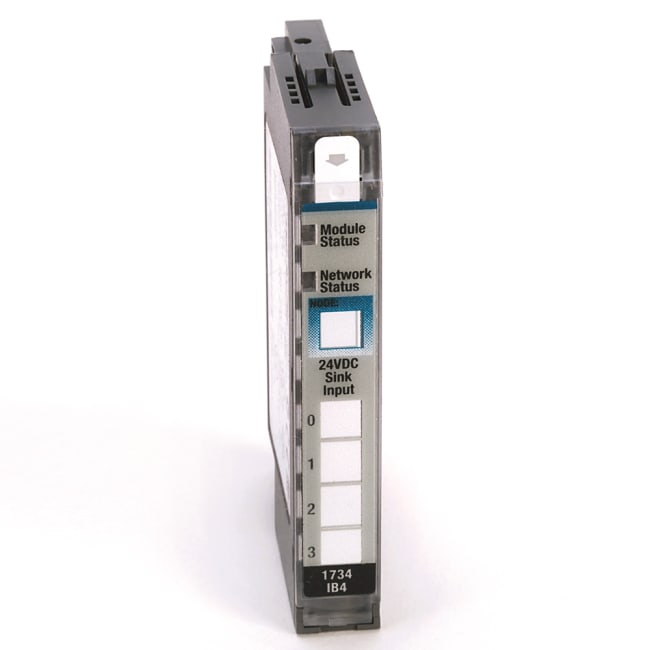

POINT I/O 4 Point Digital Input Module

Produktnummer: 1734-IB4
Produktstatus:


inkl. mva.

24V Dc 4 Channel Sink Input Module

Input Module, POINT I/O, Digital, DC, 4 Points Sinking 24VDC Input, Open Style, DIN Mounted

Egenskaper for produkt/familie

  • Mount horizontally or vertically, with no de-rating required
  • Add-on-Profiles in the Studio 5000 Logix Designer® application provide smooth integration into Integrated Architecture systems
  • Auto Device Replacement (ADR) reduces downtime
  • Available with conformal coating
  • Configurable modules
  • Comprehensive diagnostics and configurable features makes POINT I/O™ easy to apply
  • Removable wiring system saves time and money during installation and troubleshooting
  • Modular design lets you independently select the I/O, termination style, and network interface
  • Removal and Insertion Under Power (RIUP) lets you replace modules while the system is in operation
  • Modules slide together for easy install and uninstall for easier maintenance
Spesifikasjoner
Sub Brand POINT
Type DC Input Sink Module
Special Features Standard
Application In-Cabinet
Power Supply 24V DC
Mounting Din-rail
Enclosure None (open-style)
Temperature Rating -20...55 °C (-4...131 °F)
Input 4 Point
Isolation Voltage 50V. Tested to withstand 2500V DC for 60 s
POINT Digital DC Input Modules 24V Dc 4 Channel Sink Input Module
Opprinnelsesland SG
Tolltariffnummer 85389099
Lengde 8.509
Høyde 1.6
Livssyklus Active
