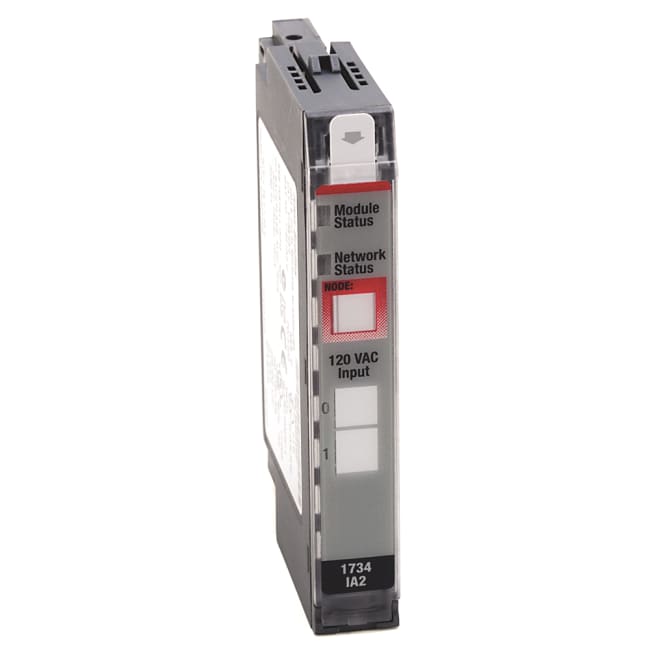

POINT I/O 2 Point Digital Input Module

Produktnummer: 1734-IA2
Produktstatus:


inkl. mva.

120 Vac 2 Channel Input Module

Input Module, POINT I/O, Digital, AC, 2 Points 120VAC Input, Open Style, DIN Mounted

Egenskaper for produkt/familie

  • Comprehensive diagnostics and configurable features makes POINT I/O™ easy to apply
  • Add-on-Profiles in the Studio 5000 Logix Designer® application provide smooth integration into Integrated Architecture systems
  • Modules slide together for easy install and uninstall for easier maintenance
  • Removal and Insertion Under Power (RIUP) lets you replace modules while the system is in operation
  • Auto Device Replacement (ADR) reduces downtime
  • Mount horizontally or vertically, with no de-rating required
  • Available with conformal coating
  • Modular design lets you independently select the I/O, termination style, and network interface
  • Configurable modules
  • Removable wiring system saves time and money during installation and troubleshooting
Spesifikasjoner
POINT Digital AC Input Modules 120 Vac 2 Channel Input Module
Special Features Standard
Enclosure None (open-style)
Temperature Rating -20...55 °C (-4...131 °F)
Input 2 Point
Power Supply 120V AC
Isolation Voltage 240V, Reinforced Insulation Type. Tested at 3250 V dc for 60 s, field-side to system
Mounting Din-rail
Application In-Cabinet
Sub Brand POINT
Type AC Input Module
Opprinnelsesland SG
Tolltariffnummer 85389099
Lengde 8.1
Høyde 1.7
Livssyklus Active
