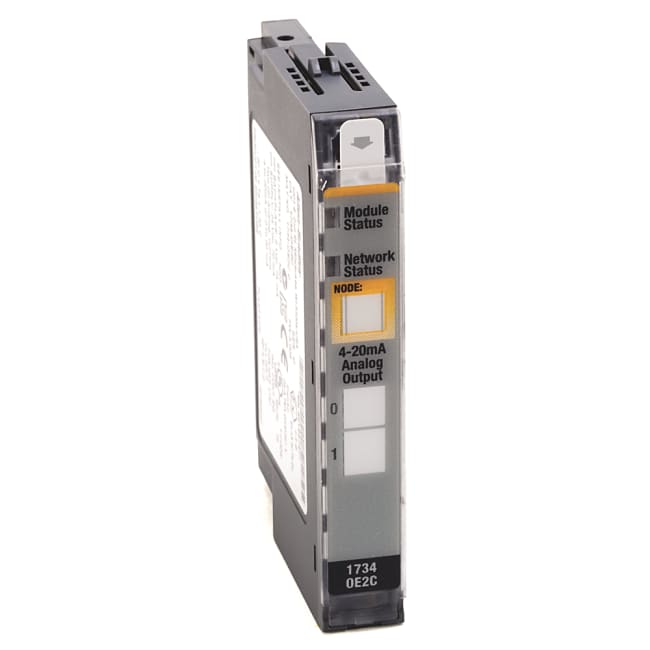

POINT I/O 2 Point Analog Output Module

Produktnummer: 1734-OE2C
Produktstatus:


inkl. mva.

24V Dc 2 Channel Analog Current Output Module

Output Module, POINT I/O, Analog, Current, 2 Channels Single Ended, Open Style, DIN Mounted

Egenskaper for produkt/familie

  • Configurable modules
  • Available with conformal coating
  • Removable wiring system saves time and money during installation and troubleshooting
  • Modular design lets you independently select the I/O, termination style, and network interface
  • Modules slide together for easy install and uninstall for easier maintenance
  • Add-on-Profiles in the Studio 5000 Logix Designer® application provide smooth integration into Integrated Architecture systems
  • Comprehensive diagnostics and configurable features makes POINT I/O™ easy to apply
  • Auto Device Replacement (ADR) reduces downtime
  • Mount horizontally or vertically, with no de-rating required
  • Removal and Insertion Under Power (RIUP) lets you replace modules while the system is in operation
Spesifikasjoner
Analog Output Modules 24V Dc 2 Channel Analog Current Output Module
Signal Range 4...20mA, 0...20mA
Special Features Standard
Mounting Din-rail
Resolution 13 Bits
Temperature Rating -20...55 °C (-4...131 °F)
Type Analog Output Module
Sub Brand POINT
Application In-Cabinet
Power Supply 24V DC
Output 2 Point
Enclosure None (open-style)
Isolation Voltage 50V Continuous. Tested to withstand 2200V dc for 60 s. No isolation between individual channels
Opprinnelsesland SG
Tolltariffnummer 85389099
Lengde 8.204
Høyde 1.6
Livssyklus Active
