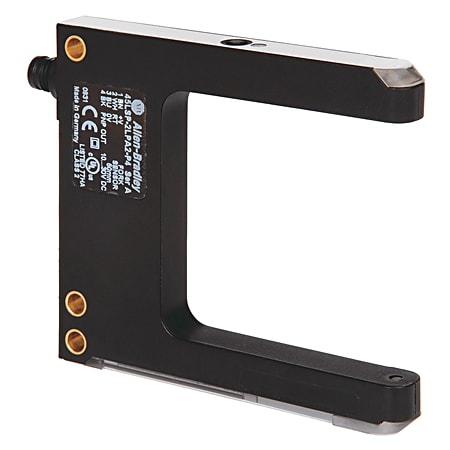

Plastic Fork Sensor

Produktnummer: 45LSP-2LNA4-P3
Produktstatus:


inkl. mva.

Photoelectric Sensor, Fork Style, Visible Red LED, Light Operate - Dark Operate Selectable Output, NPN Output, 120 mm Gap, Plastic, 3 PinPico M8 Quick Disconnect Connector, Teachable Sensitivity

Egenskaper for produkt/familie

  • Easy installation with no alignment required
  • Detects objects as small as 0.2 mm (0.008 in.)
  • Power and output status indicators
  • Light or dark operate selectable
  • Applications include:
  • Output status indicators on both sides of the fork
  • 70;889P-F3AB-5
Spesifikasjoner
Connection Media DC Pico(M8), Female, Straight, 3-pin PVC, Yellow, Unshielded, 5 m
Output NPN Output Type
Connection 3-pin Pico QD
Output Mode Light or Dark Operate Selectable
Operating Voltage 10...30V DC
Connection Type 3-pin Pico QD
Output Type NPN Output Type
Resolution 0.4 mm (0.016 in)
Sensing Gap 120 mm
Lengde 3.708
Høyde 16.408
Livssyklus Active
