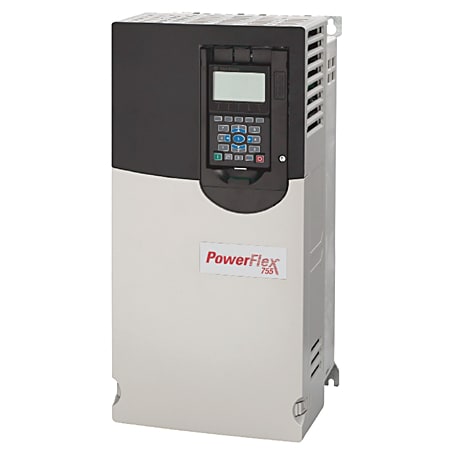

PF755 AC Drive 230V-11KW IP54 BR. Fr.3
Produktnummer: 20G11GB042JA0NNNNN
Produktstatus:
inkl. mva.
755 AC Drive, Air Cooled, Type 12 / IP54, 240 VAC, 3PH, 42 Amps, 15 HP ND, 10 HP HD, AC In w/ Prchg, see More Info, Frame 3, Filtered, CM Jumper Installed, DB Transistor, Blank (No HIM), No Option, No Option, No Option, No Option, No Option, Carton & Documents
| Spesifikasjoner | |
|---|---|
| Input Type | AC Input with DC Terminals |
| HIM | Blank (No HIM) |
| Frame Size | Frame 3 |
| Bulletin Number | PowerFlex 755 AC Drive, with Embedded Ethernet/IP |
| EMC Filtering Options | Filtered, CM Jumper Installed |
| Dynamic Braking | DB Transistor |
| Enclosure Type | Type 12 / IP54 |
| Output Current | 42 Amps, 15 HP ND, 10 HP HD |
| Voltage Class | 240 (208) VAC, 3 PH |
| Lengde | 65.405 |
| Høyde | 30.48 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 750-td001_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
Web Page Product Profile Filnavn: 750-br001_-en-p.pdf Filtype: application/pdf |
Last ned | |
|
Drive Photo Filnavn: PowerFlex755_Grp.jpg Filtype: image/png |
Last ned | |
|
Web Page Tech Data Filnavn: 750-td001_-en-p.pdf Filtype: application/pdf |
Last ned | |
|
Web Page Installation Instructions Filnavn: 750-in001_-en-p.pdf Filtype: application/pdf |
Last ned | |
|
2D Dimension Drawing (DXF) Filnavn: 357124-6 Filtype: application/x-zip-compressed |
Last ned |
