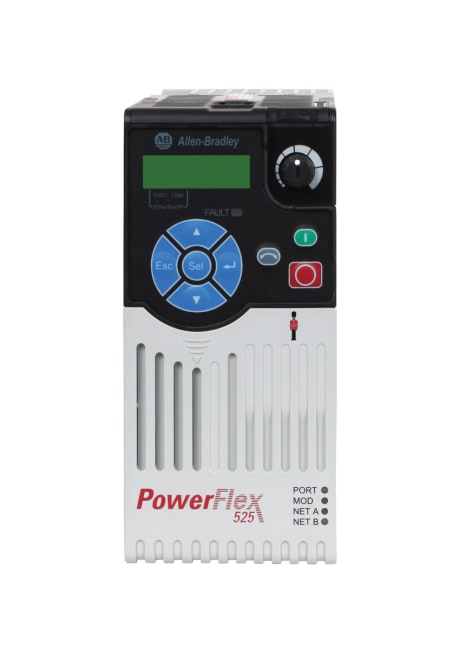

PF525 AC Drive 0,75KW 240VAC 1-FASE EMC Fr.A

Produktnummer: 25B-A4P8N114
Produktstatus:


inkl. mva.

PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 240 VAC, 1 Phase, 1.0 HP, 0.75 kW Normal Duty; 1.0 HP, 0.75 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, Filter

AC Drive, 0.75 kW (1 HP), 240V AC Input, 1 PH, 50-60 Hz, 4.8 A Output, IP20, UL-NEMA Type Open, Panel Mounting, With Brake IGBT, WithIntegralEMC Filter, V Per Hz-Sensorless Vector-Closed Loop Vector-Perm Magnet Motor Control, Safe Torque-Off PID-SIL2 Cat 3, Safe Tor

Egenskaper for produkt/familie

  • Operates in high ambient temperatures up to 70 °C (158 °F) with current derating and a control module fan kit
  • Supports seamless integration into the Logix environment and EtherNet/IP networks with built-in EtherNet/IP™
  • Features a modular design with an innovative, removable control core that allows simultaneous installation and software configuration
  • Offers a wide range of motor control, including volts per hertz, sensorless vector control, and closed loop velocity vector control
  • Features Safe Torque-off which is certified at PLd/SIL2 Cat 3. Removes rotational power to the motor without removing power from the drive for faster start-up after a demand on the safety system.
  • Provides permanent magnet motor control to help improve energy efficiency and reduce related costs
  • Offers compact footprint relative to its power range and Zero Stacking™ mounting with 50 mm airflow gap
Spesifikasjoner
Sub Brand PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety
Bulletin Number PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety
Voltage Class 240 VAC, 1 Phase
Output Current 4.8 Amps
Enclosure Type IP20 NEMA / Open Type
Frame Size Frame A
Interface Module Standard
EMC Filtering Options Filter
Input Single Phase 200-240V
Opprinnelsesland CN
Tolltariffnummer 85044090
Lengde 23.698
Høyde 22.809
Livssyklus Active
