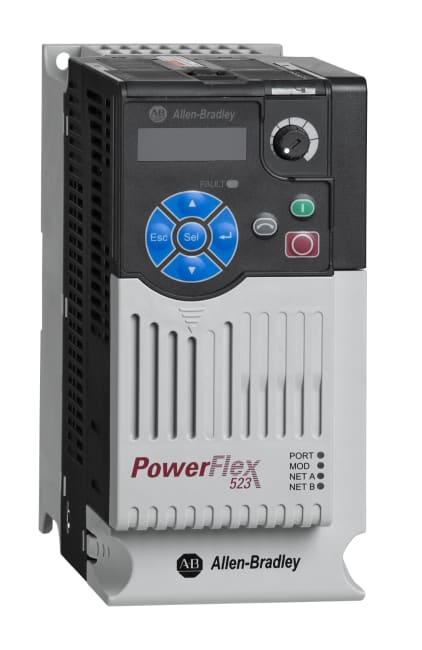

PF523 AC Drive 4KW ND/HD 230V 3-fase Fr.B

Produktnummer: 25A-B017N104
Produktstatus:


inkl. mva.

PowerFlex 523 AC Drive, 240 VAC, 3 Phase, 5 HP, 4 kW Normal Duty; 5 HP, 4 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter

PowerFlex 523 AC Drive, 240 VAC, 3 Phase, 17.5 Amps, Frame B, IP20 NEMA/ Open Type, No Filter

Egenskaper for produkt/familie

  • Offers side-by-side mounting with 50mm (1.96 in) air-flow gap at the top and bottom of the drive
  • Operates in ambient temperature range up to 70°C (158°F) with current derating and a control module fan kit
  • Supports low-cost networking through an integrated RS485/DSI port
  • Features a modular design with an innovative, removable control core that allows simultaneous installation and software configuration
  • Offers a wide range of motor control, including volts per hertz, sensorless vector control, and sensorless vector control with Economizer mode
Spesifikasjoner
Sub Brand PowerFlex 523 AC Drive
Bulletin Number PowerFlex 523 AC Drive
Voltage Class 240 VAC, 3 Phase
Output Current 17.5 Amps
Enclosure Type IP20 NEMA / Open Type
Frame Size Frame B
Interface Module Standard
EMC Filtering Options No Filter
Input Three Phase 200-240V
Opprinnelsesland CN
Tolltariffnummer 85044090
Lengde 24.994
Høyde 22.86
Livssyklus Active
