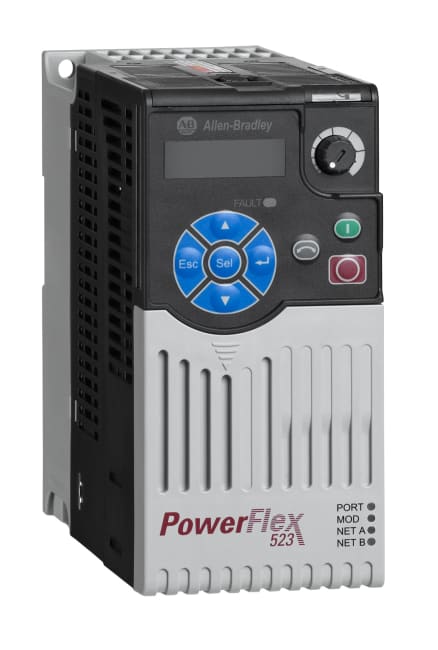

PF523 AC Drive 2,2KW ND/HD 230V 3-fase Fr.A

Produktnummer: 25A-B011N104
Produktstatus:


inkl. mva.

PowerFlex 523 AC Drive, 240 VAC, 3 Phase, 3 HP, 2.2 kW Normal Duty; 3 HP, 2.2 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter

PowerFlex 523 AC Drive, 240 VAC, 3 Phase, 11 Amps, Frame A, IP20 NEMA /Open Type, No Filter

Egenskaper for produkt/familie

  • Offers a wide range of motor control, including volts per hertz, sensorless vector control, and sensorless vector control with Economizer mode
  • Supports low-cost networking through an integrated RS485/DSI port
  • Features a modular design with an innovative, removable control core that allows simultaneous installation and software configuration
  • Offers side-by-side mounting with 50mm (1.96 in) air-flow gap at the top and bottom of the drive
  • Operates in ambient temperature range up to 70°C (158°F) with current derating and a control module fan kit
Spesifikasjoner
Sub Brand PowerFlex 523 AC Drive
Bulletin Number PowerFlex 523 AC Drive
Voltage Class 240 VAC, 3 Phase
Output Current 11 Amps
Enclosure Type IP20 NEMA / Open Type
Frame Size Frame A
Interface Module Standard
EMC Filtering Options No Filter
Input Three Phase 200-240V
Opprinnelsesland CN
Tolltariffnummer 85044090
Lengde 23.19
Høyde 22.733
Livssyklus Active
