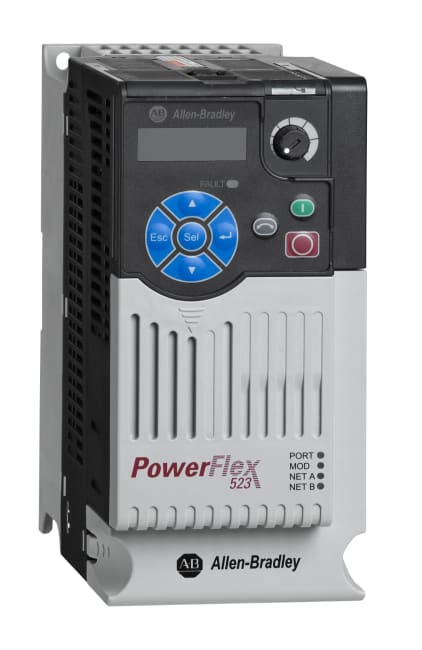

PF523 AC Drive 2,2KW ND/HD 230V 1-fase Fr.B

Produktnummer: 25A-A011N104
Produktstatus:


inkl. mva.

PowerFlex 523 AC Drive, 240 VAC, 1 Phase, 3 HP, 2.2 kW Normal Duty; 3 HP, 2.2 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter

PowerFlex 523 AC Drive, 240 VAC, 1 Phase, 11 Amps, Frame B, IP20 NEMA /Open Type, No Filter

Egenskaper for produkt/familie

  • Offers a wide range of motor control, including volts per hertz, sensorless vector control, and sensorless vector control with Economizer mode
  • Features a modular design with an innovative, removable control core that allows simultaneous installation and software configuration
  • Supports low-cost networking through an integrated RS485/DSI port
  • Offers side-by-side mounting with 50mm (1.96 in) air-flow gap at the top and bottom of the drive
  • Operates in ambient temperature range up to 70°C (158°F) with current derating and a control module fan kit
Spesifikasjoner
Sub Brand PowerFlex 523 AC Drive
Bulletin Number PowerFlex 523 AC Drive
Voltage Class 240 VAC, 1 Phase
Output Current 11 Amps
Enclosure Type IP20 NEMA / Open Type
Frame Size Frame B
Interface Module Standard
EMC Filtering Options No Filter
Input Single Phase 200-240V
Opprinnelsesland CN
Tolltariffnummer 85044090
Lengde 24.257
Høyde 22.86
Livssyklus Active

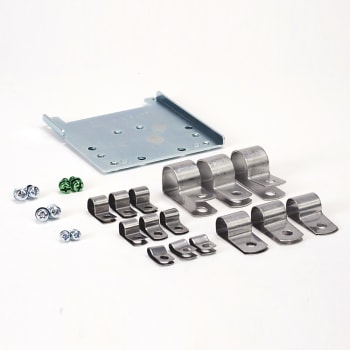

EMC JORDINGSPLATE FRAME B

PF520 Series EMC Plate - Frame B
25-EMC1-FB

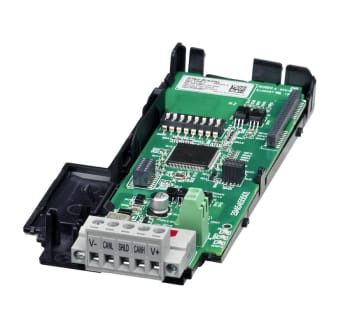

PF520 Series DeviceNet Comm Adaptor

520 Series DeviceNet Comm Adaptor
25-COMM-D


PF520 Series Dual Port Ethernet Adaptor

EtherNet/IP Communication Adaptor - Dual Port
25-COMM-E2P


PF520 Series EMC Filter 230V 21.1A 100M KABEL FRAME B

PF520 Series EMC Filter 21.1A, 230V, 3 ph, Frame B
25-RF021-BL


PF520 Series EMC Filter, 22.9A, 230V, 1

PF520 Series EMC Filter 22.9A, 230V, 1 ph, Frame B
25-RF023-BL


PF520 Series Incremental Encoder

Incremental Encoder only for use with the PF525
25-ENC-1

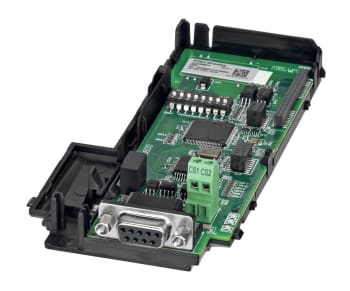

PF520 Series Profibus Comm Adaptor

PowerFlex 520-Series PROFIBUS DPV1 Adapter
25-COMM-P


PF523/525 IP21/NEMA1 kit frame B

PF520 Series NEMA/UL TYPE 1 Kit - Frame B
25-JBAB


PF525 Series EMC Filter 480V 14A 100M KABEL FRAME B

PF520 Series EMC Filter 13.8A, 480V, 3 ph, Frame B
25-RF014-BL
