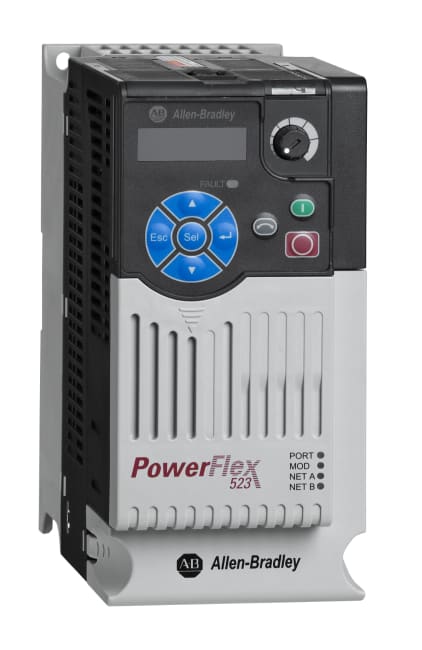

PF523 AC Drive 2,2KW ND/HD 230V 1-fase EMC Fr.B

Produktnummer: 25A-A011N114
Produktstatus:


inkl. mva.

PowerFlex 523 AC Drive, 240 VAC, 1 Phase, 3 HP, 2.2 kW Normal Duty; 3 HP, 2.2 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, Filter

PowerFlex 523 AC Drive, 240 VAC, 1 Phase, 11 Amps, Frame B, IP20 NEMA /Open Type, Filter

Egenskaper for produkt/familie

  • Offers a wide range of motor control, including volts per hertz, sensorless vector control, and sensorless vector control with Economizer mode
  • Supports low-cost networking through an integrated RS485/DSI port
  • Offers side-by-side mounting with 50mm (1.96 in) air-flow gap at the top and bottom of the drive
  • Operates in ambient temperature range up to 70°C (158°F) with current derating and a control module fan kit
  • Features a modular design with an innovative, removable control core that allows simultaneous installation and software configuration
Spesifikasjoner
Sub Brand PowerFlex 523 AC Drive
Bulletin Number PowerFlex 523 AC Drive
Voltage Class 240 VAC, 1 Phase
Output Current 11 Amps
Enclosure Type IP20 NEMA / Open Type
Frame Size Frame B
Interface Module Standard
EMC Filtering Options Filter
Input Single Phase 200-240V
Opprinnelsesland CN
Tolltariffnummer 85044090
Lengde 23.749
Høyde 22.352
Livssyklus Active
