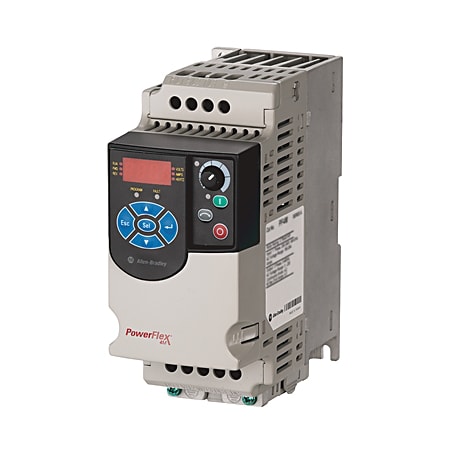

PF4M 1.5KW-8A.240V.1-FASE U/EMC
Produktnummer: 22F-A8P0N103
Produktstatus:
inkl. mva.
PowerFlex4M AC Drive, 240VAC, 1PH, 8 Amps, 1.5 kW, 2 HP,Frame Size B, IP20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, No Brake Drive
AC Drive, 1.5 kW (2 HP), 240V AC Input, 1 PH, 50-60 Hz, 8.0 A Output, IP20, UL-NEMA Type Open, Panel Mounting, Omit Brake IGBT, Frame B, 0.98PF, Integral Keypad With Potentiometer And Led Display, RS485, Fixed Terminal Block Connections.
Egenskaper for produkt/familie
- Ambient temperatures up to 50 °C (122 °F) permitted with minimal spacing between drives
- Feed-through wiring
- Drive overload protection and ramp regulation
- DIN rail mounting feature on A and B frame drives
- Zero Stacking™ Drives for ambient temperatures up to 40 °C (104 °F)
- Premier Integration with PowerFlex AC drives uses the Logix control platform to simplify parameter and tag programming and reduces development time
- IP20, NEMA/UL open type enclosures V/Hz control, slip compensation
- Power ratings:
- Configuration and programming via integral LCD keypad, remote keypad, or software
- Integral RS-485 communications
| Spesifikasjoner | |
|---|---|
| Output Current | 8 Amps |
| Enclosure Style | IP20 (Open) |
| Frame Size | Frame Size B |
| Input Voltage | 240VAC, 1PH |
| Internal Communication Module | No Brake Drive |
| EMC Filtering Options | No CE Compliant Filter |
| Human Interface Module (Type) | LED Display, Fixed Digital Keypad |
| Voltage Rating | 240VAC, 1PH |
| Opprinnelsesland | CN |
| Tolltariffnummer | 85044090 |
| Lengde | 27.61 |
| Høyde | 19.51 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 22f-td001_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
2D Drawing (DXF) Filnavn: PF4M-Frame-B.dxf Filtype: image/vnd.dxf |
Last ned | |
|
3D STEP Model (STP) Filnavn: PF4M_Frame_B Filtype: application/x-zip-compressed |
Last ned | |
|
Drive Photo Filnavn: 22F_PF4MACD_pH.jpg Filtype: image/png |
Last ned | |
|
Dimension Drawing (PDF) Filnavn: PF4M-Frame-B.pdf Filtype: application/pdf |
Last ned | |
|
Dimension Drawing Filnavn: pf4m_b_outline.dwg Filtype: image/vnd.dwg |
Last ned | |
|
ABDRS050.dwg Filnavn: ABDRS050.dwg Filtype: image/vnd.dwg |
Last ned | |
|
ABDRS050.dxf Filnavn: ABDRS050.dxf Filtype: image/vnd.dxf |
Last ned | |
|
ABDRS050.pdf Filnavn: ABDRS050.pdf Filtype: application/pdf |
Last ned | |
|
ABDRS050.wmf Filnavn: ABDRS050 Filtype: application/x-msmetafile |
Last ned | |
|
ABDRS051.dwg Filnavn: ABDRS051.dwg Filtype: image/vnd.dwg |
Last ned | |
|
ABDRS051.dxf Filnavn: ABDRS051.dxf Filtype: image/vnd.dxf |
Last ned | |
|
ABDRS051.pdf Filnavn: ABDRS051.pdf Filtype: application/pdf |
Last ned | |
|
ABDRS051.wmf Filnavn: ABDRS051 Filtype: application/x-msmetafile |
Last ned |
