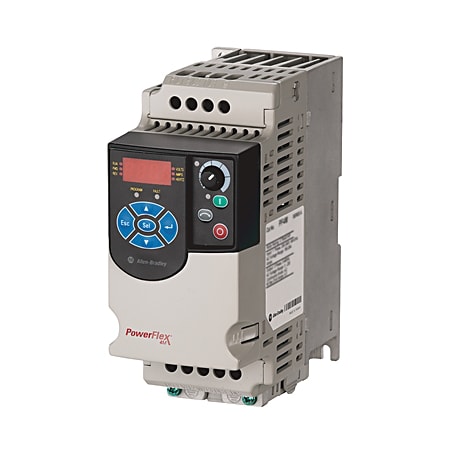

PF4M 0.25KW-1.6A 240V 1-FASE U/EMC
Produktnummer: 22F-A1P6N103
Produktstatus:
inkl. mva.
PowerFlex4M AC Drive, 240VAC, 1PH, 1.6 Amps, 0.2 kW, 0.25 HP,Frame Size A, IP20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, No Brake Drive
AC Drive, 0.2 kW (0.25 HP), 240V AC Input, 1 PH, 50-60 Hz, 1.6 A Output, IP20, UL-NEMA Type Open, Panel Mounting, Omit Brake IGBT, FrameA, 0.98 PF, Integral Keypad With Potentiometer And Led Display, RS485, Fixed Terminal Block Connections.
Egenskaper for produkt/familie
- Feed-through wiring
- Ambient temperatures up to 50 °C (122 °F) permitted with minimal spacing between drives
- Zero Stacking™ Drives for ambient temperatures up to 40 °C (104 °F)
- IP20, NEMA/UL open type enclosures V/Hz control, slip compensation
- Power ratings:
- Premier Integration with PowerFlex AC drives uses the Logix control platform to simplify parameter and tag programming and reduces development time
- DIN rail mounting feature on A and B frame drives
- Configuration and programming via integral LCD keypad, remote keypad, or software
- Integral RS-485 communications
- Drive overload protection and ramp regulation
| Spesifikasjoner | |
|---|---|
| Voltage Rating | 240VAC, 1PH |
| Input Voltage | 240VAC, 1PH |
| Frame Size | Frame Size A |
| Output Current | 1.6 Amps |
| Enclosure Style | IP20 (Open) |
| Human Interface Module (Type) | LED Display, Fixed Digital Keypad |
| Internal Communication Module | No Brake Drive |
| EMC Filtering Options | No CE Compliant Filter |
| Opprinnelsesland | CN |
| Tolltariffnummer | 85044090 |
| Lengde | 24.003 |
| Høyde | 19.101 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 22f-td001_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
Dimension Drawing (PDF) Filnavn: PF4M-Frame-A.pdf Filtype: application/pdf |
Last ned | |
|
3D STEP Model (STP) Filnavn: PF4M_Frame_A Filtype: application/x-zip-compressed |
Last ned | |
|
Drive Photo Filnavn: 22F_PF4MACD_pH.jpg Filtype: image/png |
Last ned | |
|
Dimension Drawing Filnavn: pf4m_a_outline.dwg Filtype: image/vnd.dwg |
Last ned | |
|
2D Drawing (DXF) Filnavn: PF4M-Frame-A.dxf Filtype: image/vnd.dxf |
Last ned | |
|
ABDRS040.dwg Filnavn: ABDRS040.dwg Filtype: image/vnd.dwg |
Last ned | |
|
ABDRS040.dxf Filnavn: ABDRS040.dxf Filtype: image/vnd.dxf |
Last ned | |
|
ABDRS040.pdf Filnavn: ABDRS040.pdf Filtype: application/pdf |
Last ned | |
|
ABDRS040.wmf Filnavn: ABDRS040 Filtype: application/x-msmetafile |
Last ned | |
|
ABDRS041.dwg Filnavn: ABDRS041.dwg Filtype: image/vnd.dwg |
Last ned | |
|
ABDRS041.dxf Filnavn: ABDRS041.dxf Filtype: image/vnd.dxf |
Last ned | |
|
ABDRS041.pdf Filnavn: ABDRS041.pdf Filtype: application/pdf |
Last ned | |
|
ABDRS041.wmf Filnavn: ABDRS041 Filtype: application/x-msmetafile |
Last ned |
