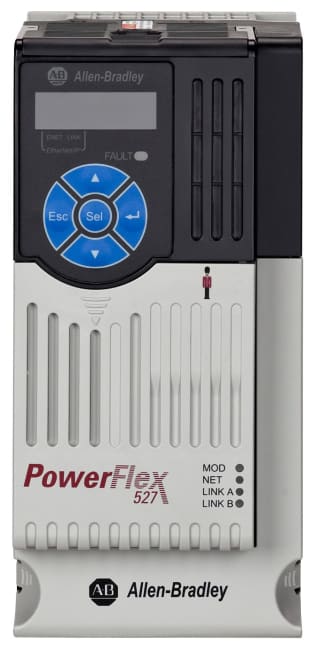

PF 527 AC Drive, 240 VAC, 1 Phase, 2.2 kW , Frame B

Produktnummer: 25C-A011N104
Produktstatus:


inkl. mva.

PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 240 VAC, 1 Phase, 3 HP, 2.2 kW Normal Duty; 3 HP, 2.2 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter

AC Drive, 2.2 kW (3 Hp), 200-240V AC Input, 50 Hz/60 Hz, Single-Phase, 11Amp, B Frame, Panel Mounting, IP20/NEMA Open Type, with 7th IGBT Brake

Egenskaper for produkt/familie

  • Offers built-in dual-port EtherNet/IP™ to support a variety of topologies as well as Device Level Ring functionality
  • Offers a new level of AC drive integration to help deliver a coordinated and synchronized machine
  • Offers low-cost solution for machine parts, applications such as pumps, fans, in-feed and out-feed conveyors, that need simple speed control for induction motors
  • Provides the ability to transfer drive configuration files to a new machine
  • Reduces downtime and minimizes manual reconfiguration by using Logix PACs to detect a replaced drive and download all configuration settings over EtherNet/IP
  • Features Safe Torque-off as a standard feature that can be applied through either hardwired safety or Integrated Safety. Both are certified to SIL 3 / PLe Cat 3
Spesifikasjoner
Sub Brand PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety
EMC Filtering Options No Filter
Voltage Class 240 VAC, 1 Phase
Interface Module Standard
Enclosure Type IP20 NEMA / Open Type
Bulletin Number PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety
Output Current 11 Amps
Frame Size Frame B
Input Single Phase 200-240V
Opprinnelsesland TW
Tolltariffnummer 85044090
Lengde 23.7
Høyde 22.81
Livssyklus Active
