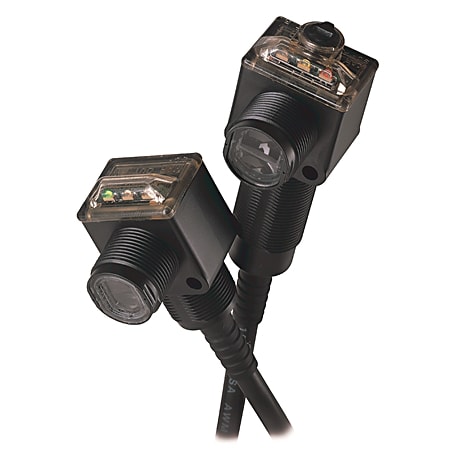

ClearSight Clear Object Detection
Produktnummer: 42EF-C2KBA-F4
Produktstatus:
inkl. mva.
PHOTOSWITCH Photoelectric Sensor, ClearSight RightSight, Standard, 10.8-30V DC, Both Sink (NPN) and Source (PNP), 4-pin DC Micro QD
PHOTOSWITCH Photoelectric Sensor, ClearSight RightSight, Standard, 10.8-30V DC, Both Sink (NPN) and Source (PNP), 4-pin DC Micro QD
Egenskaper for produkt/familie
- IP69K and ECOLAB Certified
- Status indicators for power, margin, output
- Threaded 18 mm nose-mounting option
- Connection types: Cable, Micro M12 connector
- Threaded 18 mm base-mounting option
- Through hole-mounting option
- 1 m sensing distance
| Spesifikasjoner | |
|---|---|
| Special Features | ClearSight |
| Sensing Range | 1m (3.3ft) |
| Voltage Rating | 10.8-30V DC |
| Response Time | 1 ms |
| Output Type | Both Sink (NPN) and Source (PNP) |
| Output Energized | Dark Operate |
| Product Family | ClearSight RightSight |
| Sensing Mode | ClearSight |
| Maximum Sensing Distance | 1m (3.3ft) |
| Operating Voltage | 10.8-30V DC |
| Connection Type | 4-pin DC Micro |
| Opprinnelsesland | DO |
| Tolltariffnummer | 85414090 |
| Lengde | 19.685 |
| Høyde | 2.54 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 42ef-in003_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
AutoCad Drawing 2D (DXF) Filnavn: 42EF_DC.dxf Filtype: image/vnd.dxf |
Last ned | |
|
Photo Filnavn: PHEL42EFCLR_ph.jpg Filtype: image/png |
Last ned | |
|
3D STEP Model (STP) Filnavn: 42EF_DC Filtype: application/x-zip-compressed |
Last ned | |
|
Dimension Drawing (DXF) Filnavn: ABGCA460.dxf Filtype: image/vnd.dxf |
Last ned | |
|
Dimension Drawing (PDF) Filnavn: ABGCA460.pdf Filtype: application/pdf |
Last ned |
