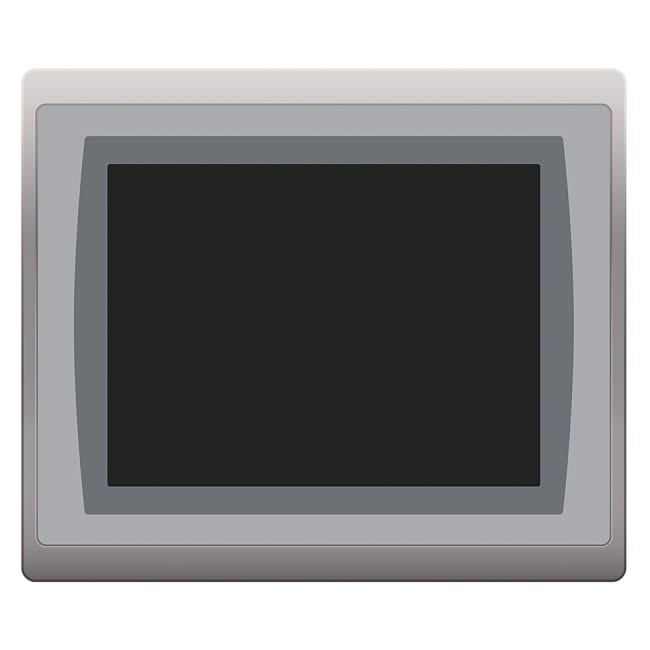

PanelView Plus 7 Standard 10'' 24VDC Brandless

Produktnummer: 2711P-T10C21D8S-B
Produktstatus:


inkl. mva.

PanelView Plus 7 Standard Terminal, Touch Screen, 10.4 inches, TFT Color, Single Ethernet, 24V DC, Windows CE OS License, Standard Model, Brandless

Graphic Terminal, Standard Model, 10.4 in. Display, TFT Color, TouchScreen, Single Etherent, 18-30 V DC, Without brand identity

Egenskaper for produkt/familie

  • Features stainless steel 304 bezel
  • Uses Windows CE 6.0 standard features and color TFT LCD, 18-bit color graphics
  • Includes replaceable blue food-grade silicone gasket
  • Offers brandless display sizes in 9 in. and 12 in.
  • Features NSF certification - See the story
  • Uses an SD card to copy and restore the operator interface quickly
  • Includes option to individually customize buttons and switches
  • Includes 512 MB RAM and 512 MB nonvolatile memory (approximately 80 MB free user memory)
  • Offers conformal coating
  • Features options to increase flexibility, including orientation mount options from either a swing arm, pedestal, or fixed surface
  • Includes email and texting notification capabilities
  • Offers 12 in. display size in a fully enclosed panel
  • Features IP66 protection for a cabinet-free HMI solution
  • UL IP69 rated and tested to IP69K according to ISO 20653
  • Monitors applications from a remote location with VNC connectivity
Spesifikasjoner
Input Type Touch Screen
Monitor Size 10.4 inches
Display Type Color (TFT)
Communications Single Ethernet
Input Voltage 24V DC
Brandless? Yes
Opprinnelsesland JP
Tolltariffnummer 85371098
Lengde 43.993
Høyde 13.995
Livssyklus Active
