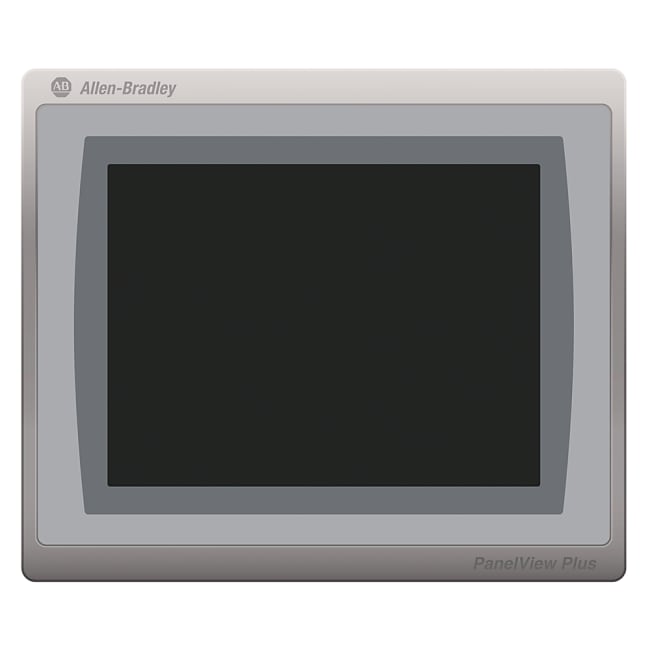

PanelView Plus 7 Standard 10'' 24VDC

Produktnummer: 2711P-T10C21D8S
Produktstatus:


inkl. mva.

PanelView Plus 7 Standard Terminal, Touch Screen, 10.4 inches, TFT Color, Single Ethernet, 24V DC, Windows CE OS License, Standard Model

Graphic Terminal, Standard Model, 10.4 in. Display, TFT Color, TouchScreen, Single Etherent, 18-30 V DC

Egenskaper for produkt/familie

  • Features stainless steel 304 bezel
  • Features NSF certification - See the story
  • Uses Windows CE 6.0 standard features and color TFT LCD, 18-bit color graphics
  • Includes 512 MB RAM and 512 MB nonvolatile memory (approximately 80 MB free user memory)
  • Includes email and texting notification capabilities
  • Offers brandless display sizes in 9 in. and 12 in.
  • Features options to increase flexibility, including orientation mount options from either a swing arm, pedestal, or fixed surface
  • UL IP69 rated and tested to IP69K according to ISO 20653
  • Offers 12 in. display size in a fully enclosed panel
  • Includes option to individually customize buttons and switches
  • Uses an SD card to copy and restore the operator interface quickly
  • Offers conformal coating
  • Includes replaceable blue food-grade silicone gasket
  • Monitors applications from a remote location with VNC connectivity
  • Features IP66 protection for a cabinet-free HMI solution
Spesifikasjoner
Input Type Touch Screen
Monitor Size 10.4 inches
Display Type Color (TFT)
Communications Single Ethernet
Input Voltage 24V DC
Brandless? No
Opprinnelsesland JP
Tolltariffnummer 85371098
Lengde 43.942
Høyde 13.97
Livssyklus Active
