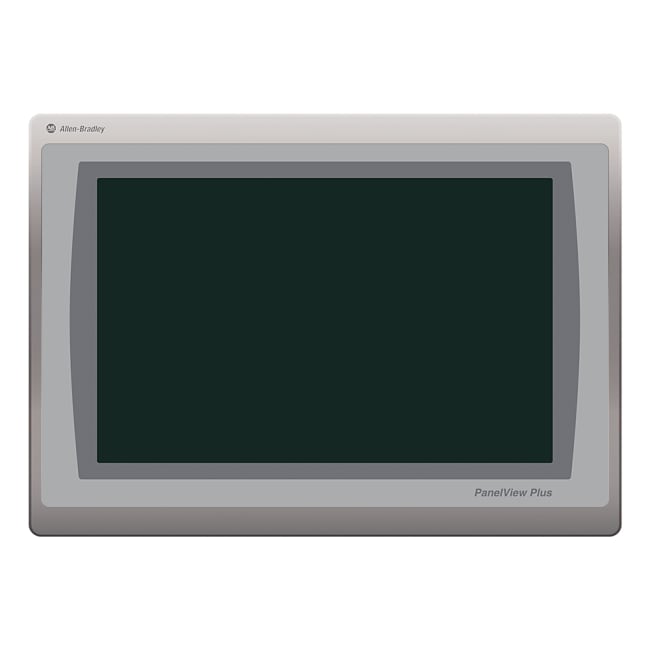

PanelView Plus 7 Performance 12''Wide Touch DLR 24VDC
Produktnummer: 2711P-T12W22D9P
Produktstatus:
inkl. mva.
Graphic Terminal, Performance Model, Extended Features, 12.1 in., TFTColor, Wide Aspect Ratio, Touch screen, Device Level Ring Ethernet, 18-30 VDC
Egenskaper for produkt/familie
- Offers 12 in. display size in a fully enclosed panel
- Offers conformal coating
- Includes email and texting notification capabilities
- Uses an SD card to copy and restore the operator interface quickly
- UL IP69 rated and tested to IP69K according to ISO 20653
- Offers brandless display sizes in 9 in. and 12 in.
- Monitors applications from a remote location with VNC connectivity
- Includes option to individually customize buttons and switches
- Features NSF certification - See the story
- Features options to increase flexibility, including orientation mount options from either a swing arm, pedestal, or fixed surface
- Features IP66 protection for a cabinet-free HMI solution
- Includes 512 MB RAM and 512 MB nonvolatile memory (approximately 80 MB free user memory)
- Uses Windows CE 6.0 standard features and color TFT LCD, 18-bit color graphics
- Features stainless steel 304 bezel
- Includes replaceable blue food-grade silicone gasket
| Spesifikasjoner | |
|---|---|
| Communications | Embedded Switch/DLR |
| Input Voltage | 24V DC |
| Monitor Size | 12 inches |
| Brandless? | No |
| Display Type | Wide aspect ratio Color |
| Input Type | Touch Screen |
| Lengde | 39.751 |
| Høyde | 19.05 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 2711p-td009_-en-p.pdf Filtype: application/pdf |
Last ned |
