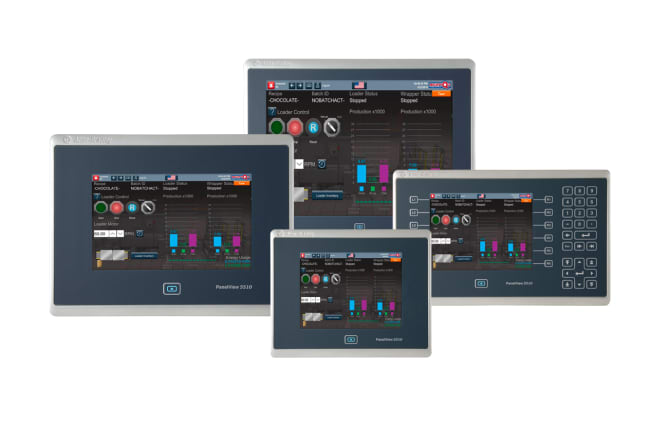

PanelView 5310 7in Graphic Terminal

Produktnummer: 2713P-T7WD1-B
Produktstatus:


inkl. mva.

PanelView 5310,7 in. Wide Display , Touch screen,Wide aspect ratio Color, 24V DC, Single Ethernet port

Graphic Terminal, PanelView 5310, 7 in. Wide Display, TFT Color, Touch Screen, Single Ethernet, 18-30 V DC, Without brand identity

Egenskaper for produkt/familie

  • Includes Logix-based alarms to eliminate need for additional configuration
  • Achieves <100 ms response for machine jogging applications with a high-speed HMI button
  • Supports 100 screens, connection to one controller, and 4000 alarms
  • Shares tags, alarms, and other data using Studio 5000 View Designer™ environment automatically
  • Provides Logix tag extended property support to help develop richer context
  • Features a modern design with a slim, aluminum bezel
  • Provides 1.46 GHz dual-core processor, 1 Gb RAM, 4 Gb flash
  • Offers emulator to test run a project without downloading to a physical terminal
  • Allows for the ability to create custom, re-usable add-on graphics to more efficiently build your applications
  • Uses a built-in VNC server to support a remote VNC client for monitoring and troubleshooting
Spesifikasjoner
Operator Input Touch screen
Display Size 7 in. Wide Display
Display Type Wide aspect ratio Color
Input Voltage 24V DC
Communicaions Single Ethernet port
Brandless ? Yes
Tolltariffnummer 85371098
Lengde 35.306
Høyde 19.05
Livssyklus Active
