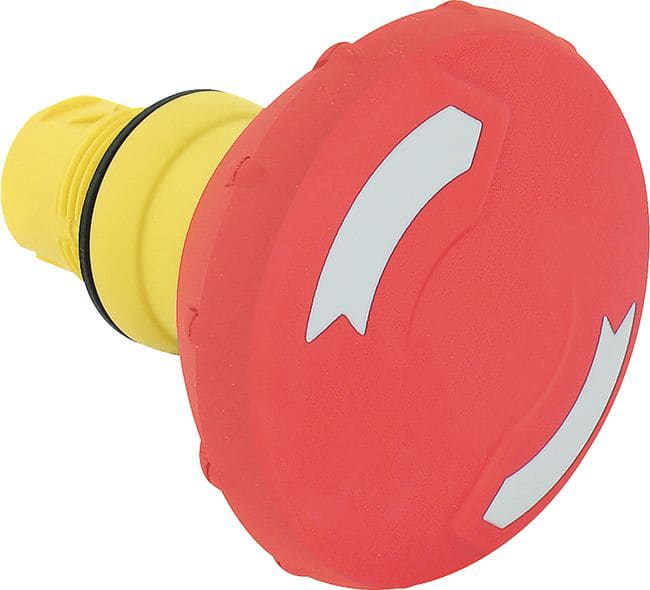

Nødstopp trykk-vri 60mm rød

Produktnummer: 800FM-MT64
Produktstatus:


inkl. mva.

800F Non-Illuminated Mushroom Operators, Twist to Release, 60mm, Round Metal (Type 4/13, IP66), Red, , Standard Pack (Qty. 1)

800F PB, 22mm Twist To Release E-Stop, 60 mm Twist to Release, No Power Module (Lamp Type), Red, No Power Module, Metal, No Power Module (Voltage), No Screw, None (Monolithic Circuit)

Egenskaper for produkt/familie

  • Finger-safe contact blocks
  • Uses standard Bulletin 800F extended push buttons
  • Anti-rotation tab provides accurate alignment and can be easily removed for use in panels without notches
  • Ring lug capability
  • Buttons are flush-mounted with the enclosure to reduce accidental operation
  • Electrical and mechanical interlocks
  • Aesthetic design complements the Bulletin 800F modular line
  • IP66, NEMA Type 4/4X/13
  • Made of industrial-grade thermoplastic for superior chemical resistance
  • Low back-of-panel profile (45.7 mm)
  • Compatible with Bulletin 800F accessories and enclosures
Spesifikasjoner
Called From 800FC Library No
Operator Construction Round Metal (Type 4/13, IP66)
Operator Type Twist to Release, 60mm
Color Cap Red
Packaging Standard Pack, Quantity:1
Part Numbers No Back of Panel Part Numbers
Back of Panel Components No Contact Block Selection
Opprinnelsesland CN
Tolltariffnummer 85389099
Lengde 9.652
Høyde 5.842
Livssyklus Active
