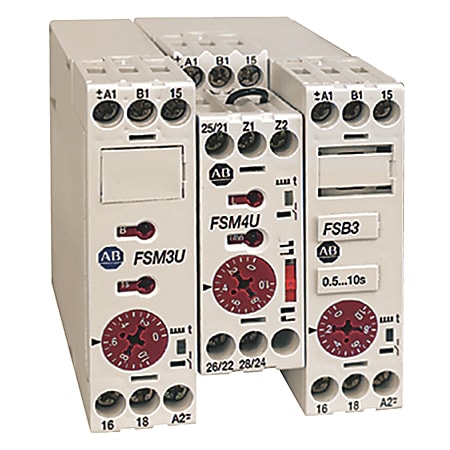

MULTI TIDSRELE 24-240VAC/24-48VDC
Produktnummer: 700-FSM3UU23
Produktstatus:
inkl. mva.
700-FS General Purpose High Performance Timing Relay, Multi-Function (Modes: A, B, C, D, E, F, I, and L) Multi-Range, 0.05 seconds to 60 hours, 1 N.O. (Changeover - SPDT), 24-48V DC / 24-240V 50/60Hz
High Performance Timing Relay, Multi-Function Multi-Range, 0.05 seconds to 60 hours, 24-48V DC / 24-240V 50/60Hz, 1 Changeover Contact(SPDT), No Hazardous Location Cert
Egenskaper for produkt/familie
- Provides panel and DIN rail mounting without cost of socket
- Includes adjustable function and timing range timing relays
- Provides coil surge protection
- Offers 22.5 mm wide multi-function or single function options
| Spesifikasjoner | |
|---|---|
| Note | The 700-FS can be panel or DIN rail mounted. Allowing at least 5 mm of open space on each side of the 700-FS for proper ventilation, should result in best long term performance. |
| Control Voltage | 24-48V DC / 24-240V 50/60Hz |
| Timing Range | 0.05 seconds to 60 hours |
| Contact Configuration | 1 C/O ( Changeover - SPDT) |
| Timing Function | Multi-Function Multi-Range |
| Opprinnelsesland | CZ |
| Tolltariffnummer | 85364900 |
| Lengde | 10.693 |
| Høyde | 2.591 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 700-td552_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
Specifications Sheet Filnavn: 700FS%20Specifications.jpg Filtype: image/png |
Last ned | |
|
Approximate Dimensions Filnavn: 700-FS%20dimensions.pdf Filtype: application/pdf |
Last ned | |
|
Family Photo Filnavn: 700FS_Ph.jpg Filtype: image/png |
Last ned | |
|
ABCRJ050.dwg Filnavn: ABCRJ050.dwg Filtype: image/vnd.dwg |
Last ned | |
|
ABCRJ050.dxf Filnavn: ABCRJ050.dxf Filtype: image/vnd.dxf |
Last ned | |
|
ABCRJ050.pdf Filnavn: ABCRJ050.pdf Filtype: application/pdf |
Last ned | |
|
ABCRJ050.wmf Filnavn: ABCRJ050 Filtype: application/x-msmetafile |
Last ned | |
|
ABCRJ051.dwg Filnavn: ABCRJ051.dwg Filtype: image/vnd.dwg |
Last ned | |
|
ABCRJ051.dxf Filnavn: ABCRJ051.dxf Filtype: image/vnd.dxf |
Last ned | |
|
ABCRJ051.pdf Filnavn: ABCRJ051.pdf Filtype: application/pdf |
Last ned | |
|
ABCRJ051.wmf Filnavn: ABCRJ051 Filtype: application/x-msmetafile |
Last ned |
