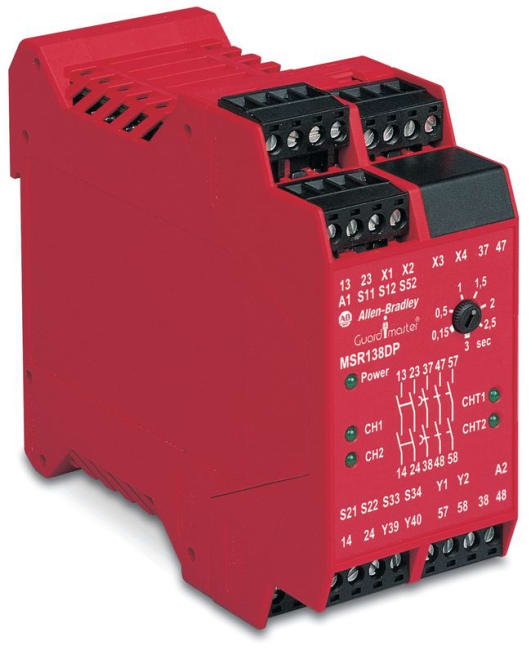

MSR138DP, 24VAC/DC, tidsomr: 0,15..3sek.
Produktnummer: 440R-M23143
Produktstatus:
inkl. mva.
Monitoring Safety Relays w/ Delayed Outputs -, Inputs, Safety Outputs, N/A Auxiliary Outputs,
Safety Relay, MSR138DP, 24V AC/DC, Automatic/Manual Monitored, Removable, 45MM Housing Width, 0.15 to 3 Seconds Delay, Infinite, One 2 N.C. Input, One LC Input, 2 Safety Output, 3 N.O. Relay Delay Output, CAT 4 Rated
Egenskaper for produkt/familie
- Provides expansion modules with timing functions for the Guardmaster® Safety Relays and the MSR relay family
- Increases the number of outputs while retaining the same integrity as the base unit
| Spesifikasjoner | |
|---|---|
| Removable Terminals | Removable |
| Immediate Auxiliary Outputs | N/A |
| Immediate Safety Outputs | 2 N.O. |
| Reset | Configured Automatic/Manual or Manual Monitored Reset |
| Delayed Timing | 0.15 to 3 seconds |
| Power Supply | 24V AC/DC |
| Delayed Safety Outputs | 3 N.O. |
| Output | 2 N.O., 3 N.O. Delayed |
| Relay Model Selected | MSR138DP |
| Opprinnelsesland | DE |
| Tolltariffnummer | 85364190 |
| Lengde | 10.49 |
| Høyde | 5.004 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 440r-in063_-mu-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
Photo Filnavn: MSR138.jpg Filtype: image/png |
Last ned | |
|
2-Dimensional Drawing (DXF) Filnavn: MSR138DP.dwg Filtype: image/vnd.dwg |
Last ned | |
|
3-Dimensional STEP model (STP) Filnavn: msr138dp Filtype: application/x-zip-compressed |
Last ned | |
|
2-Dimensional Drawing (PDF) Filnavn: MSR138DP.pdf Filtype: application/pdf |
Last ned |
