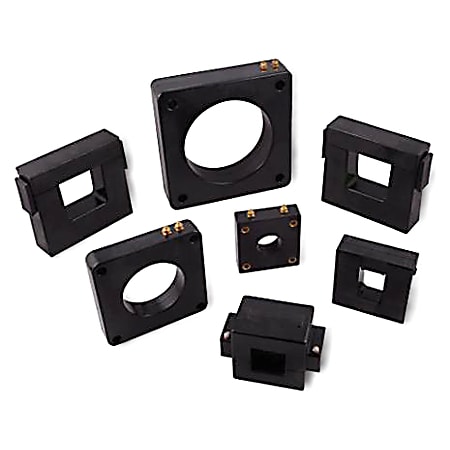

MODEL 2SFT 50:5 RATIO
Produktnummer: 1411-2SFT-500
Produktstatus:
inkl. mva.
Bulletin 1411 - Current Tranformer, 1.13" Inner Diameter, Square Outer Shape, Integrated Mounting Feet, 50 Amp Primary to 5A Secondary Ratio, Single Piece Current Transformer (solid-core)
Bulletin 1411 - Current Tranformer, 1.13 Inner Diameter with square exterior and bracket (for relay and metering), 200:5 Ratio, 4.0VA Burden
Egenskaper for produkt/familie
- Includes metering grade
- Includes low voltage (600V AC)
- Offers a variety of types including round, rectangular, and split-core
| Spesifikasjoner | |
|---|---|
| Type | 1.13" Inner Diameter, Square Outer Shape, Integrated Mounting Feet |
| Module Designation | 1.13" Inner Diameter, Square Outer Shape, Integrated Mounting Feet |
| Ratio Designation | 50 Amp Primary to 5A Secondary Ratio |
| Core Type | Single Piece Current Transformer (solid-core) |
| Opprinnelsesland | US |
| Tolltariffnummer | 85043180 |
| Lengde | 7.01 |
| Høyde | 9.296 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 1411-td001_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
Dimension Drawing (PDF) Filnavn: 10004774219_00.pdf Filtype: application/pdf |
Last ned | |
|
Powermonitor Photo Filnavn: 1411_Ph.jpg Filtype: image/png |
Last ned | |
|
3D STEP (STP) Model Filnavn: 1411-2SFT Filtype: application/x-zip-compressed |
Last ned |
