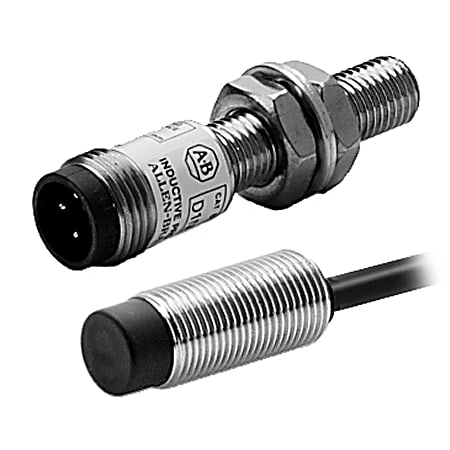

Tubular Intrinsically Safe NAMUR Sensor
Produktnummer: 871C-DH2M12-D4
Produktstatus:
inkl. mva.
Inductive Sensor, Miniature Small Barrel, Short Barrel, 12 mm Barrel Diameter, DC Standard Range, 2 mm Sensing Distance, 5..15V DC, Namur Style, 4-Pin Micro QD DC
Egenskaper for produkt/familie
- Applications include:
- 2-wire NAMUR operation
- Shielded and unshielded models
- Short barrel length
| Spesifikasjoner | |
|---|---|
| Barrel Diameter | 12mm |
| Proximity Sensor Type | 2-Wire NAMUR |
| Switching Frequency | 2000 [Hz] |
| Shielding | Shielded |
| Barrel Type | Short |
| IO Link Enabled | No |
| Nominal Sensing Distance | 2mm |
| Output Configuration | NAMUR |
| Connection Type | Micro Quick-Disconnect (DC) |
| Output | NAMUR |
| Sensing Distance | 2mm |
| Special Features | Short |
| Type | 2-Wire NAMUR |
| Connection | Micro Quick-Disconnect (DC) |
| Lengde | 8.89 |
| Høyde | 5.105 |
| Livssyklus | Active |
