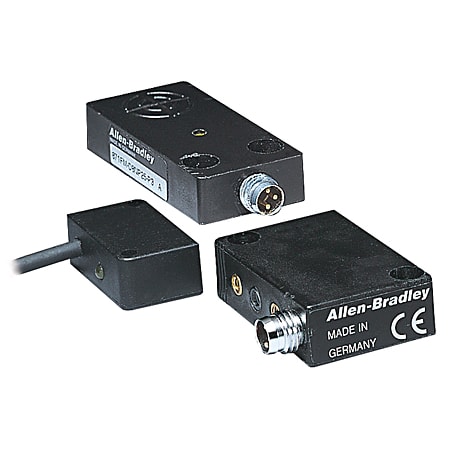

Mini Flat Pack Inductive Sensor
Produktnummer: 871FM-D2NP11-P3
Produktstatus:
inkl. mva.
Inductive Sensor, Miniature Rectangular, 28x16x11 mm Housing Dimensions, DC, 2 mm Sensing Distance, Normally Open Sourcing, 3 Pin Pico Quick Disconnect
Egenskaper for produkt/familie
- Incorporates embedded IO-Link Technology in select sensors to help minimize downtime and increase productivity
- Offers rugged full stainless steel models that provide Factor-1 equal sensing / weld field immunity for tough applications
- Offers extended range sensing for metal versions allows mounting further away from target which reduces chance of impact and related damage
| Spesifikasjoner | |
|---|---|
| Output | N.O., Source (PNP) |
| Barrel Type | Rectangular, Standard |
| Output Configuration | N.O., Source (PNP) |
| Voltage Type | 10-30 V DC |
| Connection Type | Pico Quick-Disconnect |
| Switching Frequency (Hz) | 600 Hz |
| Nominal Sensing Distance | 2mm |
| Proximity Sensor Type | 3-Wire DC Plastic Housing |
| IO Link Enabled | No |
| Sensor Size | 28x16x11mm |
| Shielding | Shielded |
| Lengde | 4.089 |
| Høyde | 2.108 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: prox-td001_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
Photo Filnavn: 871FM_PH.jpg Filtype: image/png |
Last ned | |
|
3D STEP Model (STP) Filnavn: 871FM-D2NP11-P3 Filtype: application/x-zip-compressed |
Last ned | |
|
ABGCO080.dwg Filnavn: ABGCO080.dwg Filtype: image/vnd.dwg |
Last ned | |
|
ABGCO080.dxf Filnavn: ABGCO080.dxf Filtype: image/vnd.dxf |
Last ned | |
|
ABGCO080.wmf Filnavn: ABGCO080 Filtype: application/x-msmetafile |
Last ned | |
|
ABGCO081.dwg Filnavn: ABGCO081.dwg Filtype: image/vnd.dwg |
Last ned | |
|
ABGCO081.dxf Filnavn: ABGCO081.dxf Filtype: image/vnd.dxf |
Last ned | |
|
ABGCO081.wmf Filnavn: ABGCO081 Filtype: application/x-msmetafile |
Last ned |
