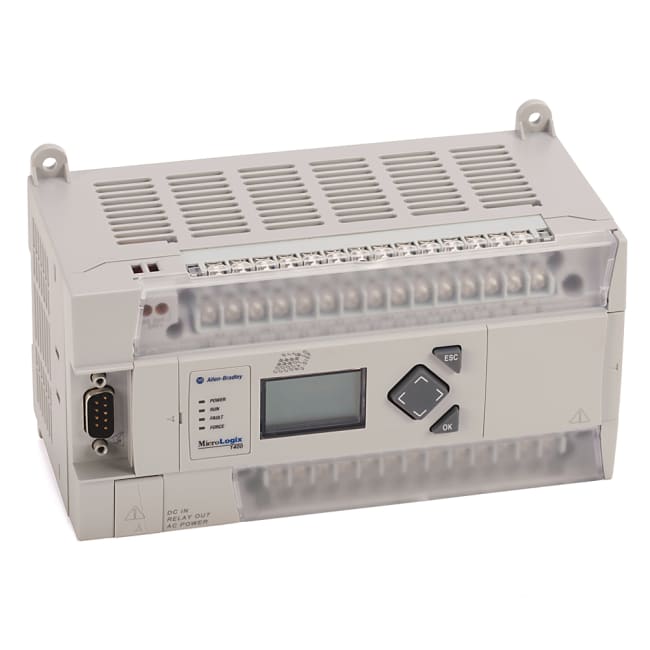

MicroLogix 1400, 12FDI, 8DI, 6RO, 3FDO, 3DO, 4AI, 2AO, 24VDC

Produktnummer: 1766-L32BXBA
Produktstatus:


inkl. mva.

MicroLogix 1400, 12 digital fast 24V dc inputs, 8 digital 24V dc inputs, 6 relay outputs, 3 fast 24V dc outputs, 3 normal 24V dc outputs, 4 Analog (12 bits) inputs, 2 Analog (12 bits) outputs, 24V dc power

MicroLogix 1400, 12 digital fast 24V dc inputs, 8 digital 24V dc inputs, 6 relay outputs, 3 fast 24V dc outputs, 3 normal 24V dcoutputs, 4 Analog (12 bits) inputs, 2 Analog (12 bits) outputs, 24V dcpower

Egenskaper for produkt/familie

  • Expands application capabilities through support for as many as seven 1762 MicroLogix Expansion I/O modules with 256 discrete I/O
  • Ethernet port provides Web server capability, email capability and protocol support for DNP3 protocol support
  • Up to 128 KB for data logging and 64 KB for recipe
  • 10 KB words in user program memory with 10 KB words in user data memory)
  • As many as six embedded 100 kHz high-speed counters (only on controllers with DC inputs)
  • Built-in LCD provides simple interface for messages, bit/integer monitoring and manipulation
  • Built-in LCD with backlight lets you view controller and I/O status
  • Two serial ports with DF1, DH-485, Modbus RTU, DNP3 and ASCII protocol support
  • 20;1585J-M8TBJM-1M9
Spesifikasjoner
Sub Brand MicroLogix 1400
Type Controller
Special Features Built-in RTC, Online Editing, 6 HSC, 3 PTO/PWM, Up to 7 Expansion I/O
Standard c-UL-us CL1DIV2, CE, C-Tick, KCC
Number Of Channels 20 I/P, 12 O/P
Input Signal 24V DC
Output Signal (6) Relay and (6) 24V DC FET
Communication DF1, DH-485, Modbus RTU, ASCII, DNP3, EtherNet/IP messaging, DNP3 over IP, Modbus TCP/IP
Enclosure IP20
Display Yes
Memory 20 KB
Interface Ethernet Port, Isolated RS232/485 and Non-Isloated RS232C Serial Ports.
Power Supply 24V DC
Mounting DIN Rail, Panel Mount
Height 90
Width 180
Depth 87
Operating Temperature -20... 60 °C (-4...140 °F)
Embedded Analog (4) Voltage Inputs / (2) Voltage Outputs
Controllers MicroLogix 1400, 12 digital fast 24V dc inputs, 8 digital 24V dc inputs, 6 relay outputs, 3 fast 24V dc outputs, 3 normal 24V dc outputs, 4 Analog (12 bits) inputs, 2 Analog (12 bits) outputs, 24V dc power
Network Media Male RJ45 to Male RJ45 Patchcord, Unshielded Twisted Pair, Teal TPE Cable, 1.9 m
Opprinnelsesland SG
Tolltariffnummer 85371091
Lengde 14.097
Høyde 10.541
Livssyklus Active
