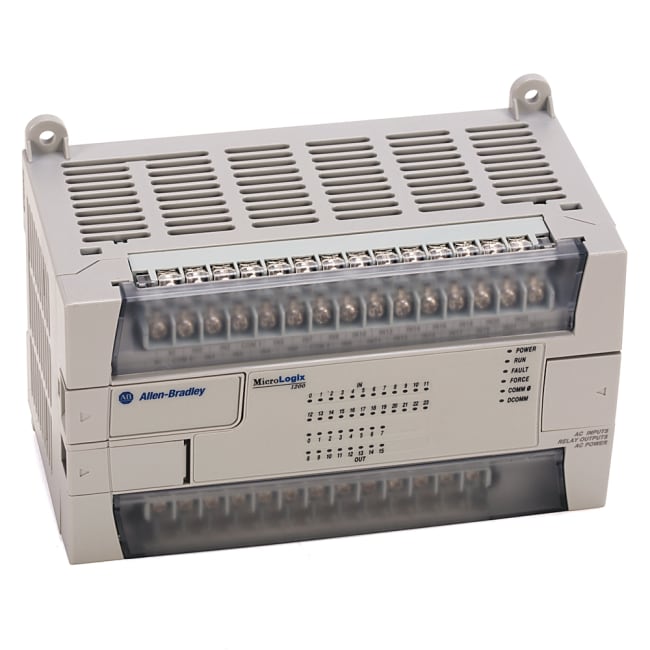

MicroLogix 1200 40 Point Controller**EndOfLife:28.02.2021

Produktnummer: 1762-L40BWA
Produktstatus:


inkl. mva.

1762 MicroLogix 1200 System, MicroLogix 1200, 120/240V ac power, (20) standard 24V dc and (4) Fast 24V dc digital inputs, (16) relay outputs

MicroLogix 1200, 120/240V ac power, (20) standard 24V dc and (4) Fast 24V dc digital inputs, (16) relay outputs

Egenskaper for produkt/familie

  • Thermocouple module with 4 input channels plus a CJC sensor
  • Offers Programmable Limit Switch function
  • Finger-safe terminal blocks for I/O wiring
  • 8, 16, or 32 inputs or outputs
  • Label to record I/O terminal designations
  • AC/DC relay output modules
  • Digital, analog, and specialty I/O modules available
  • AC and DC voltages
  • Combination module with 2 differential inputs and 2 single-ended outputs
  • Combination module with 8 inputs and 6 contact outputs
  • Compatible with 1762 MicroLogix Expansion I/O modules (up to six modules per controller)
  • Feature-rich functionality addresses a wide range of applications
  • Software keying prevents incorrect positioning within the system
  • Provides program data security
  • Provides four latching or pulse-catch inputs and four interrupt inputs
  • Expands up to 136 I/O points
  • Contains isolated RS-232/RS-485 combo port for serial and networked communication
  • Provides additional programming/HMI port for connectivity to a DF1 full-duplex compatible device (only on MicroLogix™ 1200R controllers)
  • RTD module with 4 input channels
  • Includes two built-in 3/4-turn trim potentiometers with a digital output range of 0...250
  • Includes built-in independent 20 kHz high-speed counter
  • Supports floating point data files
  • Network support includes EtherNet/IP™, DeviceNet™, and DH-485 (local only)
  • Small footprint reduces panel space
  • Output module with 4 single-ended outputs
  • Input module with 4 differential inputs
  • Integrated high-performance I/O bus
Spesifikasjoner
Controllers MicroLogix 1200, 120/240V ac power, (20) standard 24V dc and (4) Fast 24V dc digital inputs, (16) relay outputs
Height 90
Output Signal Relay
Input Signal 24V DC
Number Of Channels 24 I/P, 16 O/P
Operating Temperature 0... 55 °C (32...131 °F)
Power Supply 120/240V AC
Display No
Enclosure IP20
Special Features 1 HSC, Up to 6 Expansion I/O
Communication DF1, DH-485, Modbus RTU, ASCII
Mounting DIN Rail, Panel Mount
Type Controller
Standard c-UL-us CL1DIV2, CE, C-Tick, KCC
Width 160
Interface RS-232C Port
Depth 87
Sub Brand MicroLogix 1200
Memory 6 KB
Opprinnelsesland SG
Tolltariffnummer 85371091
Lengde 19.558
Høyde 9.779
Livssyklus End of Life
