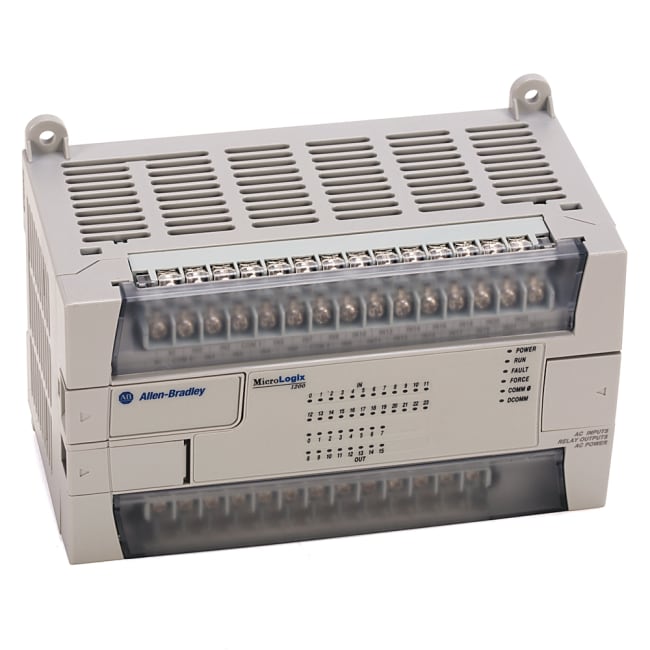

MicroLogix 1200 40 Point Controller**EndOfLife:28.02.2021
inkl. mva.
1762 MicroLogix 1200 System, MicroLogix 1200, 120/240V ac power, (24) 120V ac digital inputs, (16) relay outputs, with Programming/HMI Port
Egenskaper for produkt/familie
- Supports floating point data files
- Network support includes EtherNet/IP™, DeviceNet™, and DH-485 (local only)
- Software keying prevents incorrect positioning within the system
- Includes built-in independent 20 kHz high-speed counter
- Integrated high-performance I/O bus
- RTD module with 4 input channels
- 8, 16, or 32 inputs or outputs
- Output module with 4 single-ended outputs
- AC/DC relay output modules
- Offers Programmable Limit Switch function
- Combination module with 2 differential inputs and 2 single-ended outputs
- Digital, analog, and specialty I/O modules available
- Includes two built-in 3/4-turn trim potentiometers with a digital output range of 0...250
- Combination module with 8 inputs and 6 contact outputs
- Input module with 4 differential inputs
- Contains isolated RS-232/RS-485 combo port for serial and networked communication
- Finger-safe terminal blocks for I/O wiring
- Feature-rich functionality addresses a wide range of applications
- Small footprint reduces panel space
- Provides additional programming/HMI port for connectivity to a DF1 full-duplex compatible device (only on MicroLogix™ 1200R controllers)
- AC and DC voltages
- Provides four latching or pulse-catch inputs and four interrupt inputs
- Thermocouple module with 4 input channels plus a CJC sensor
- Provides program data security
- Compatible with 1762 MicroLogix Expansion I/O modules (up to six modules per controller)
- Expands up to 136 I/O points
- Label to record I/O terminal designations
Spesifikasjoner | |
---|---|
Controllers | MicroLogix 1200, 120/240V ac power, (24) 120V ac digital inputs, (16) relay outputs, with Programming/HMI Port |
Output Signal | Relay |
Special Features | Up to 6 Expansion I/O |
Memory | 6 KB |
Height | 90 |
Number Of Channels | 24 I/P, 16 O/P |
Communication | DF1, DH-485, Modbus RTU, ASCII |
Enclosure | IP20 |
Mounting | DIN Rail, Panel Mount |
Depth | 87 |
Interface | (2) RS-232C Port |
Operating Temperature | 0... 55 °C (32...131 °F) |
Standard | c-UL-us CL1DIV2, CE, C-Tick, KCC |
Width | 160 |
Display | No |
Power Supply | 120/240V AC |
Sub Brand | MicroLogix 1200 |
Input Signal | 120V AC |
Type | Controller |
Opprinnelsesland | SG |
Tolltariffnummer | 85371091 |
Lengde | 20.091 |
Høyde | 9.703 |
Livssyklus | End of Life |
