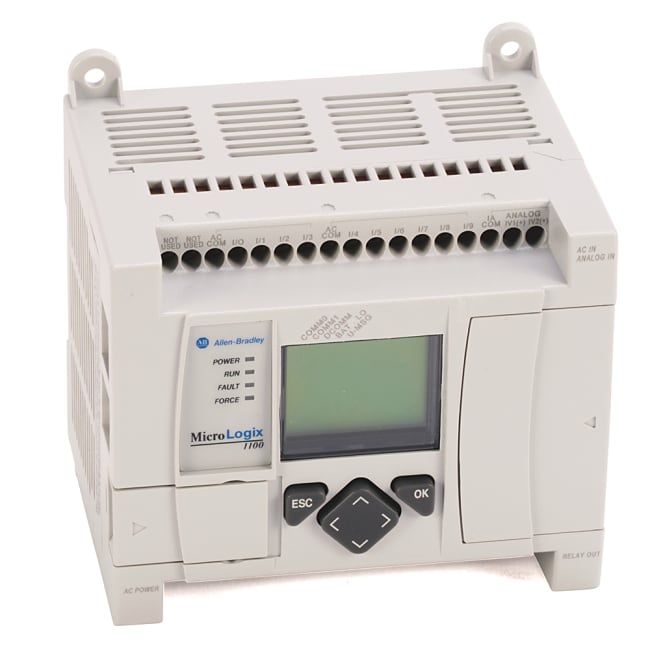

MicroLogix 1100 16 Point Contr. **End of Life: 01.04.2022

Produktnummer: 1763-L16DWD
Produktstatus:


inkl. mva.

1763 MicroLogix 1100 System, MicroLogix 1100, 12/24V dc power, (10) 12/24V dc digital inputs, (2) 10V analog inputs, (6) relay outputs

MicroLogix 1100, 12/24V dc power, (10) 12/24V dc digital inputs, (2) 10V analog inputs, (6) relay outputs

Egenskaper for produkt/familie

  • Supports on-line editing
  • Lets you monitor and modify controller data through an embedded LCD screen
  • Provides embedded web server so you can configure controller data to be displayed as a web page
  • Supports up to 144 digital I/O points
  • Includes built-in 10/100 MBps EtherNet/IP™ port for peer-to-peer messaging
  • Provides 8 KB memory (4 KB user program with 4 KB user data)
  • Lets you access, monitor and program from any Ethernet connection
  • Compatible with 1762 MicroLogix Expansion I/O modules (up to four modules per controller)
  • Contains isolated RS-232/RS-485 combination port for serial and networked communication
  • 20;1585J-M8TBJM-1M9
Spesifikasjoner
Sub Brand MicroLogix 1100
Type Controller
Special Features Built-in RTC, Online Editing, 1 HSC, Up to 4 Expansion I/O
Standard c-UL-us CL1DIV2, CE, C-Tick, KCC
Number Of Channels 10 I/P, 6 O/P
Input Signal 12/24V DC
Output Signal Relay
Communication DF1, DH-485, Modbus RTU, ASCII, EtherNet/IP messaging
Enclosure IP20
Display Yes
Memory 8 KB
Interface Ethernet Port and Isolated RS-232/RS-485 combo port
Power Supply 12V DC - 24V DC
Mounting DIN Rail, Panel Mount
Height 90
Width 110
Depth 87
Operating Temperature -20... 60 °C (-4...140 °F)
Embedded Analog (2) Analog Voltage I/P
Controllers MicroLogix 1100, 12/24V dc power, (10) 12/24V dc digital inputs, (2) 10V analog inputs, (6) relay outputs
Network Media Male RJ45 to Male RJ45 Patchcord, Unshielded Twisted Pair, Teal TPE Cable, 1.9 m
Opprinnelsesland SG
Tolltariffnummer 85371091
Lengde 14.605
Høyde 9.804
Livssyklus Active Mature
