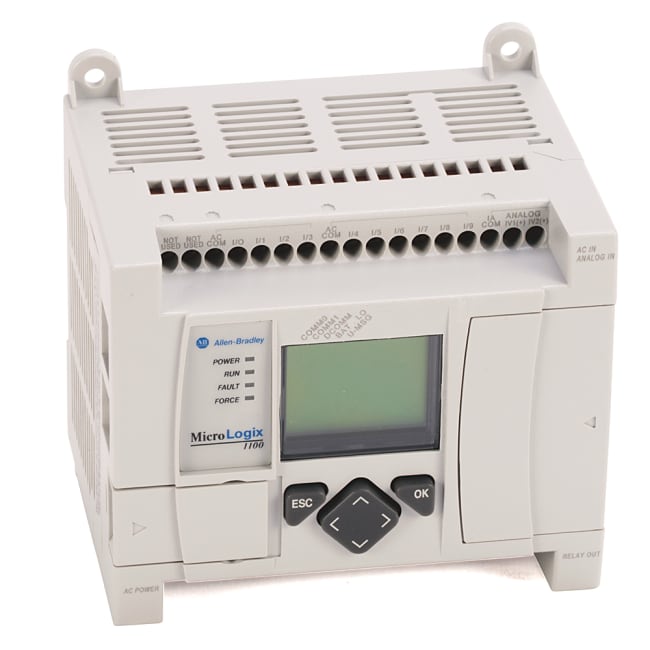

MicroLogix 1100 16 Point Contr. **End of Life: 01.04.2022
Produktnummer: 1763-L16BBB
Produktstatus:
1763 MicroLogix 1100 System, MicroLogix 1100, 24V dc power, (10) 24V dc digital inputs, (2) 10V analog inputs, (2) relay outputs, (4) 24V dc FET outputs
MicroLogix 1100, 24V dc power, (10) 24V dc digital inputs, (2) 10V analog inputs, (2) relay outputs, (4) 24V dc FET outputs
Egenskaper for produkt/familie
- Supports up to 144 digital I/O points
- Lets you access, monitor and program from any Ethernet connection
- Provides 8 KB memory (4 KB user program with 4 KB user data)
- Provides embedded web server so you can configure controller data to be displayed as a web page
- Includes built-in 10/100 MBps EtherNet/IP™ port for peer-to-peer messaging
- Compatible with 1762 MicroLogix Expansion I/O modules (up to four modules per controller)
- Supports on-line editing
- Contains isolated RS-232/RS-485 combination port for serial and networked communication
- Lets you monitor and modify controller data through an embedded LCD screen
- 20;1585J-M8TBJM-1M9
| Spesifikasjoner | |
|---|---|
| Sub Brand | MicroLogix 1100 |
| Type | Controller |
| Special Features | Built-in RTC, Online Editing, 1 HSC, Up to 4 Expansion I/O |
| Standard | c-UL-us CL1DIV2, CE, C-Tick, KCC |
| Number Of Channels | 10 I/P, 6 O/P |
| Input Signal | 24V DC |
| Output Signal | (2)Relay and (4)24V DC FET |
| Communication | DF1, DH-485, Modbus RTU, ASCII, EtherNet/IP messaging |
| Enclosure | IP20 |
| Display | Yes |
| Memory | 8 KB |
| Interface | Ethernet Port and Isolated RS-232/RS-485 combo port |
| Power Supply | 120/240V AC |
| Mounting | DIN Rail, Panel Mount |
| Height | 90 |
| Width | 110 |
| Depth | 87 |
| Operating Temperature | -20... 60 °C (-4...140 °F) |
| Embedded Analog | (2) Analog Voltage I/P |
| Controllers | MicroLogix 1100, 24V dc power, (10) 24V dc digital inputs, (2) 10V analog inputs, (2) relay outputs, (4) 24V dc FET outputs |
| Network Media | Male RJ45 to Male RJ45 Patchcord, Unshielded Twisted Pair, Teal TPE Cable, 1.9 m |
| Livssyklus | Active Mature |
| Opprinnelsesland | SG |
| Lengde | 12.7 |
| Tolltariffnummer | 85371091 |
| Høyde | 9.804 |
