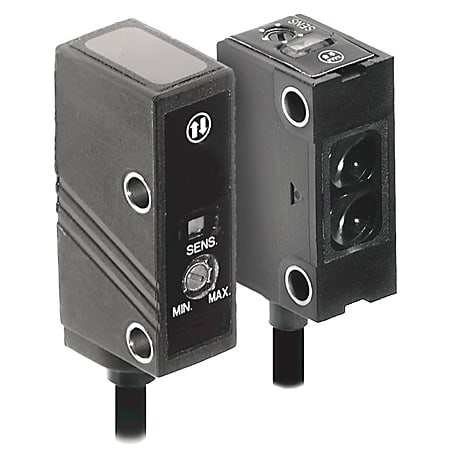

Micro Rectangular Sensor
Produktnummer: 42KB-D1LNSD-A2
Produktstatus:
inkl. mva.
Micro Rectangular Sensor, Side Through Hole, Standard Diffuse, Infrared, 40.00 EA , Manually Adjustable, NPN, DC LO or DO Selectable, 2 m (6.5 ft) Cable, Plastic, Side View, Side through hole, IP67, NEMA 6P
Egenskaper for produkt/familie
- Highly visible status
- Four sensing modes
- Selectable light/dark operate
- Compact rectangular package
- Sensitivity adjustment
- 2 m cable or pico QD connections
| Spesifikasjoner | |
|---|---|
| Maximum Sensing Distance | 70mm (2.8in) |
| Output Type | Sink (NPN) |
| Light Source | Infrared LED |
| View | Side |
| Sensitivity Adjustment | Yes |
| Connection Type | 2m (6.5ft) cable |
| Operating Voltage/Mode | 12-24V DC - LO or DO selectable |
| Sensing Mode | Standard Diffuse |
| Sensing Beam | Infrared |
| Output | Sink (NPN) |
| Connection | 2m (6.5ft) cable |
| Voltage Rating | 12-24V DC - LO or DO selectable |
| Lengde | 11.4 |
| Høyde | 5.001 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
