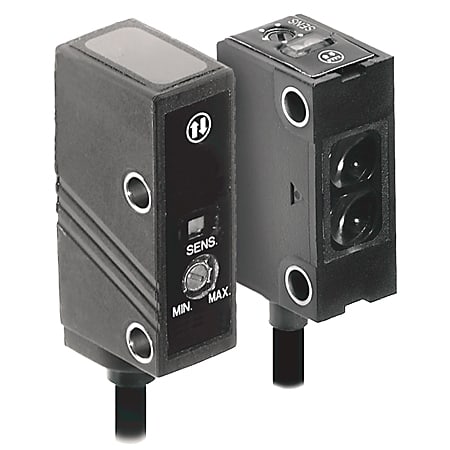

Micro Rectangular Sensor
Produktnummer: 42KB-D1LNEG-A2
Produktstatus:
inkl. mva.
Micro Rectangular Sensor, Side Through Hole, Standard Diffuse, Infrared, 125.00 EA , Manually Adjustable, NPN, DC LO or DO Selectable, 2 m(6.5 ft) Cable, Plastic, End View, Side through hole, IP67, NEMA 6P
Egenskaper for produkt/familie
- Selectable light/dark operate
- Compact rectangular package
- Highly visible status
- Sensitivity adjustment
- Four sensing modes
- 2 m cable or pico QD connections
| Spesifikasjoner | |
|---|---|
| Connection | 2m (6.5ft) cable |
| Voltage Rating | 12-24V DC - LO or DO selectable |
| Sensing Beam | Infrared |
| Output | Sink (NPN) |
| Connection Type | 2m (6.5ft) cable |
| Output Type | Sink (NPN) |
| Sensing Mode | Standard Diffuse |
| Sensitivity Adjustment | Yes |
| Operating Voltage/Mode | 12-24V DC - LO or DO selectable |
| Maximum Sensing Distance | 200mm (7.9in) |
| Light Source | Infrared LED |
| View | End |
| Lengde | 11.557 |
| Høyde | 5.461 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 42kb-in001_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
Dimension Drawing (DWG/DXF) Filnavn: 42KB.dwg Filtype: image/vnd.dwg |
Last ned | |
|
Photo Filnavn: PHEL42KB_PH.jpg Filtype: image/png |
Last ned | |
|
3D STEP Model (STP) Filnavn: 42kb_end Filtype: application/x-zip-compressed |
Last ned | |
|
ABGCM540.dwg Filnavn: ABGCM540.dwg Filtype: image/vnd.dwg |
Last ned | |
|
ABGCM540.dxf Filnavn: ABGCM540.dxf Filtype: image/vnd.dxf |
Last ned | |
|
ABGCM540.pdf Filnavn: ABGCM540.pdf Filtype: application/pdf |
Last ned | |
|
ABGCM540.wmf Filnavn: ABGCM540 Filtype: application/x-msmetafile |
Last ned | |
|
ABGCM541.dwg Filnavn: ABGCM541.dwg Filtype: image/vnd.dwg |
Last ned | |
|
ABGCM541.dxf Filnavn: ABGCM541.dxf Filtype: image/vnd.dxf |
Last ned | |
|
ABGCM541.pdf Filnavn: ABGCM541.pdf Filtype: application/pdf |
Last ned | |
|
ABGCM541.wmf Filnavn: ABGCM541 Filtype: application/x-msmetafile |
Last ned |
