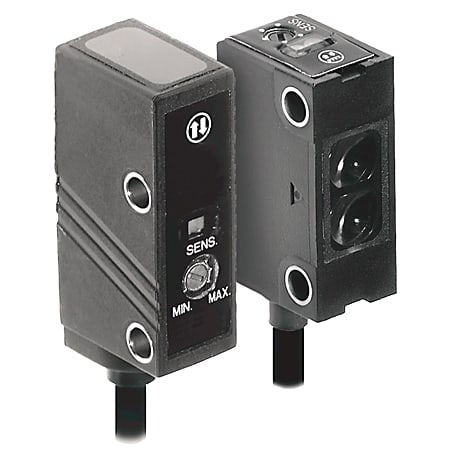

Micro Rectangular Sensor
Produktnummer: 42KB-D1LPEG-Y3
Produktstatus:
inkl. mva.
Micro Rectangular Sensor, Side Through Hole, Standard Diffuse, Infrared, 125.00 EA , Manually Adjustable, PNP, DC LO or DO Selectable, 3 Pin Pico M8 QD on Cable, Plastic, End View, Side through hole, IP67, NEMA 6P
| Spesifikasjoner | |
|---|---|
| Operating Voltage/Mode | 12-24V DC - LO or DO selectable |
| View | End |
| Connection Type | 3-pin Pico QD on 152 mm (6 inch) pigtail |
| Sensitivity Adjustment | Yes |
| Sensing Mode | Standard Diffuse |
| Light Source | Infrared LED |
| Maximum Sensing Distance | 200mm (7.9in) |
| Output Type | Source (PNP) |
| Lengde | 15.999 |
| Høyde | 2.601 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 42kb-in001_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
Dimension Drawing (DWG/DXF) Filnavn: 42KB.dwg Filtype: image/vnd.dwg |
Last ned | |
|
3D STEP Model (STP) Filnavn: 42kb_end Filtype: application/x-zip-compressed |
Last ned | |
|
Photo Filnavn: PHEL42KB_PH.jpg Filtype: image/png |
Last ned | |
|
ABGCM540.dwg Filnavn: ABGCM540.dwg Filtype: image/vnd.dwg |
Last ned | |
|
ABGCM540.dxf Filnavn: ABGCM540.dxf Filtype: image/vnd.dxf |
Last ned | |
|
ABGCM540.pdf Filnavn: ABGCM540.pdf Filtype: application/pdf |
Last ned | |
|
ABGCM540.wmf Filnavn: ABGCM540 Filtype: application/x-msmetafile |
Last ned | |
|
ABGCM541.dwg Filnavn: ABGCM541.dwg Filtype: image/vnd.dwg |
Last ned | |
|
ABGCM541.dxf Filnavn: ABGCM541.dxf Filtype: image/vnd.dxf |
Last ned | |
|
ABGCM541.pdf Filnavn: ABGCM541.pdf Filtype: application/pdf |
Last ned | |
|
ABGCM541.wmf Filnavn: ABGCM541 Filtype: application/x-msmetafile |
Last ned |
