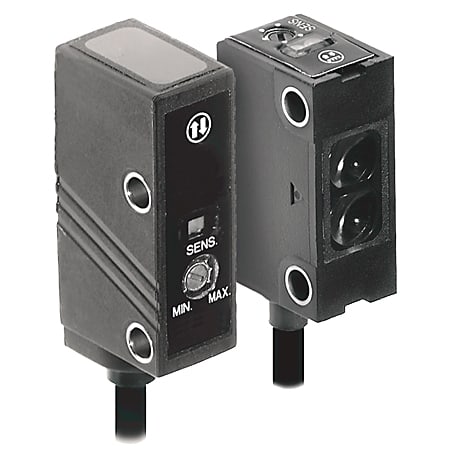

Micro Rectangular Sensor
Produktnummer: 42KB-D1LNED-A2
Produktstatus:
inkl. mva.
Micro Rectangular Sensor, Side Through Hole, Standard Diffuse, Infrared, 40.00 EA , Manually Adjustable, NPN, DC LO or DO Selectable, 2 m (6.5 ft) Cable, Plastic, End View, Side through hole, IP67, NEMA 6P
Egenskaper for produkt/familie
- 2 m cable or pico QD connections
- Highly visible status
- Compact rectangular package
- Selectable light/dark operate
- Four sensing modes
- Sensitivity adjustment
| Spesifikasjoner | |
|---|---|
| Sensing Beam | Infrared |
| Voltage Rating | 12-24V DC - LO or DO selectable |
| Output | Sink (NPN) |
| Connection | 2m (6.5ft) cable |
| Sensing Mode | Standard Diffuse |
| Maximum Sensing Distance | 70mm (2.8in) |
| Light Source | Infrared LED |
| Operating Voltage/Mode | 12-24V DC - LO or DO selectable |
| Output Type | Sink (NPN) |
| View | End |
| Sensitivity Adjustment | Yes |
| Connection Type | 2m (6.5ft) cable |
| Lengde | 11.176 |
| Høyde | 5.461 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 42kb-in001_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
Dimension Drawing (DWG/DXF) Filnavn: en-US Filtype: image/vnd.dwg |
Last ned | |
|
Photo Filnavn: en-US Filtype: image/png |
Last ned | |
|
3D STEP Model (STP) Filnavn: en-US Filtype: application/x-zip-compressed |
Last ned | |
|
ABGCM500.dwg Filnavn: en-US Filtype: image/vnd.dwg |
Last ned | |
|
ABGCM500.dxf Filnavn: en-US Filtype: image/vnd.dxf |
Last ned | |
|
ABGCM500.pdf Filnavn: en-US Filtype: application/pdf |
Last ned | |
|
ABGCM500.wmf Filnavn: en-US Filtype: application/x-msmetafile |
Last ned | |
|
ABGCM501.dwg Filnavn: en-US Filtype: image/vnd.dwg |
Last ned | |
|
ABGCM501.dxf Filnavn: en-US Filtype: image/vnd.dxf |
Last ned | |
|
ABGCM501.pdf Filnavn: en-US Filtype: application/pdf |
Last ned | |
|
ABGCM501.wmf Filnavn: en-US Filtype: application/x-msmetafile |
Last ned |
