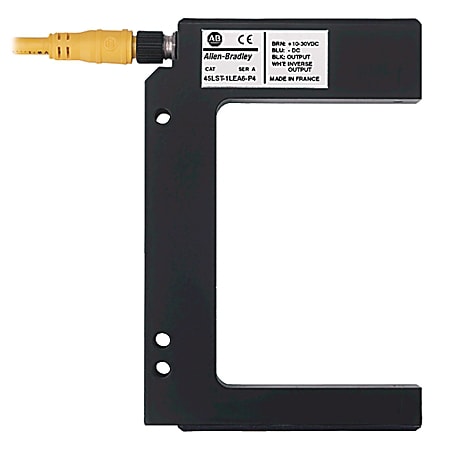

Fork Sensor, Side Through Hole, Transmitted Beam Pair, Infrared, 80.00 EA , Manually Adjustable, NPN - PNP Selectable Output, DC - LO or DO Selectable, 4 Pin Pico M8 Quick Disconnect
Egenskaper for produkt/familie
- Applications include:
- IP65 Housing
- Industrial aluminum housing
- NPN/PNP output
- 60;889P-F4AB-5
| Spesifikasjoner | |
|---|---|
| Output | Sink (NPN) / Source (PNP) Output Selectable |
| Sensing Beam | Infrared |
| Sensing Range | 80mm (3.15in) |
| Voltage Rating | DC - LO or DO selectable |
| Connection | 4-pin Pico QD |
| Connection Media | DC Pico(M8) ,Female ,Straight ,4-pin PVC, Yellow, Unshielded ,5 m |
| Output Type | Sink (NPN) / Source (PNP) Output Selectable |
| Light Source | Infrared |
| Connection Type | 4-pin Pico QD |
| Operating Voltage/Mode | DC - LO or DO selectable |
| Sensing Gap | 80mm (3.15in) |
| Lengde | 16.51 |
| Høyde | 4.801 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: fork-td001_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
Photo Filnavn: PHEL45LST_PH.jpg Filtype: image/png |
Last ned | |
|
Dimension Drawing (3D STEP format) Filnavn: 45lst_80 Filtype: application/x-zip-compressed |
Last ned | |
|
Dimension Drawing (2D DWG format) Filnavn: 45lst.dwg Filtype: image/vnd.dwg |
Last ned |
