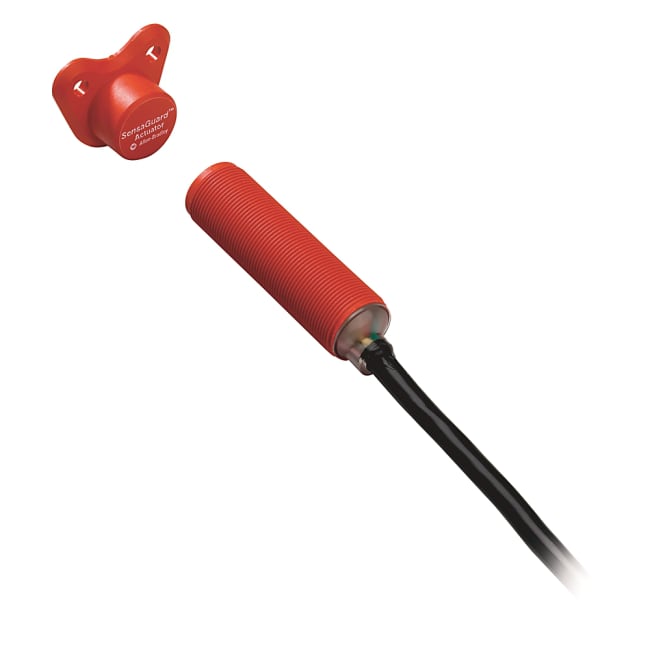

Magnetically Coded MC1 , 2 NC. 3 M Cable
Produktnummer: 440N-Z2NRS1A
Produktstatus:
inkl. mva.
Magnetically Coded, MC1 , 2 N.C. REED Switch Contacts ,, No LED Indicator,3 M Cable,
440N Non Contact Switch, Magnetically Coded, No Special Features, 2 N.C. Safety, Reed, Standard Actuator, Standard Code, PVC Cable 3M, Plastic Small Flat Pack
Egenskaper for produkt/familie
- Magnetic coded sensing
- Designed for use with specified controllers
- High tolerance to misalignment
- Non-contact actuation
| Spesifikasjoner | |
|---|---|
| Product Family | Magnetically Coded |
| Safety Outputs | 2 Normally Closed (N.C.) Magnetically Operated Reed Switches |
| Type | MC1 |
| Connection | 3 M Cable |
| Auxiliary Outputs | None |
| LED Indicator | No |
| Opprinnelsesland | DO |
| Tolltariffnummer | 85365080 |
| Lengde | 15.189 |
| Høyde | 7.112 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 440n-in002_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
Wiring Diagram Filnavn: MCWiring.jpg Filtype: image/png |
Last ned | |
|
2-Dimensional Drawing (PDF) Filnavn: 440N-Z%20Integrated%20latch%202D.pdf Filtype: application/pdf |
Last ned | |
|
2-Dimensional Drawing (DXF) Filnavn: SensaGuard%20Integrated%20Latch.dxf Filtype: image/vnd.dxf |
Last ned | |
|
3-Dimensional STEP model (STP) Filnavn: mc1%20step%20assy Filtype: application/x-zip-compressed |
Last ned | |
|
Dimensions Filnavn: MCDimensions.jpg Filtype: image/png |
Last ned |
