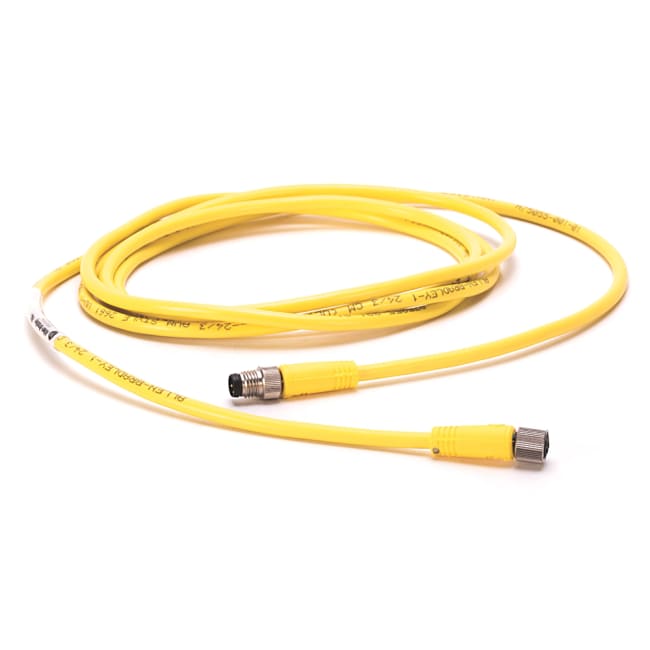

M8 kabel, 3-pin, hunn-hann, Gul, Uskjermet, 24AWG, 5m
Produktnummer: 889P-F3ABPM-5
Produktstatus:
inkl. mva.
Patchcord: Pico (M8), Female, Straight, 3-Pin, PVC Cable, Yellow, Unshielded, IEC Color Coded, Pico, Male, Straight, 5 meter (16.4 feet)
Pico Cable, Female, Straight (Int Threads), Female, Straight (int threads), Standard Materials, 3-Pins, 3-Pins, Pico, Male, Straight (ext.threads), Straight, Male(Ext. Threads), Pico (M8), Same as First End, PVC Cbl, Yellow, UnShld, 24AWG, PVC Cable, Yellow, 24AWG, Patchcord, Standard, 5 m
Egenskaper for produkt/familie
- Includes epoxy-coated zinc coupling nuts which provide durability
- Includes 12-pin/11-conductor on 19-pin for passive distribution and other box applications
- Includes ratcheting coupling nut which resists vibration
- Provides heavy-duty re-enforcing braiding used as a grounded shield reduces noise
- Includes cordsets: Cable with integral female connector at one end and flying leads at the other
- Includes heavy duty STOOW 16 AWG cables
- Includes general purpose 18 AWG cables
- Provides highly visible yellow polyvinylchloride (PVC) jacket which resists oil and chemicals
- Offers a one-piece molded body design
- Offers red cable jackets to identify safety networks on your machines
- Provides highly visible yellow polyvinylchloride (PVC) jacket resists oil and chemicals
- Includes 12-pin configuration for SafeShield™ light curtains and other applications
- Includes nickel-plated brass coupling nuts on Pico (M8)
- Includes ratcheting coupling nut for added vibration resistance
- Includes patchcords: Cable with integral connector at each end (one male, one female)
| Spesifikasjoner | |
|---|---|
| Female End Termination | Pico (M8) |
| Number of Pins | 3-Pin |
| Female Connector Style | Female, Straight |
| Male End Termination | Pico (M8) |
| Number of Pins | Same as Female End |
| Male Connector Style | Male, Straight |
| Cable Type | PVC Cable, Yellow, Unshielded |
| Wire Size | 24AWG |
| Cable Color Code | IEC Standard Color Code (European) |
| Hardware Material | Nickel Plated Brass - Female End / Epoxy coated Zinc - Male End |
| Special Characteristics | Standard |
| Units | Meters |
| Standard or Build-to-Order Cable Length | 5 meters (16.4 feet) |
| Pin Layout (Female End) | Pinout: |
| Pin Layout (Male End) | Pinout: |
| Opprinnelsesland | CN |
| Tolltariffnummer | 85444290 |
| Lengde | 17.094 |
| Høyde | 3.302 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 889-td002_-en-p.pdf Filtype: application/pdf |
