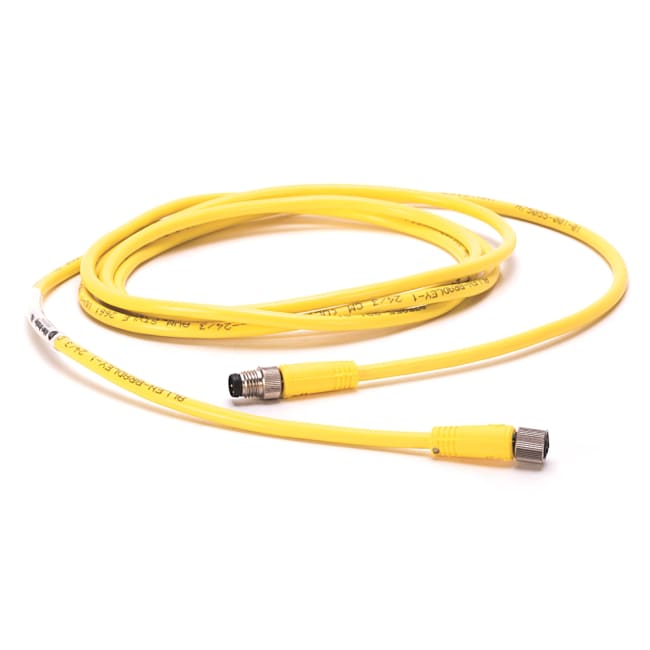

M8 kabel, 3-pin, hunn-hann, Gul, Uskjermet, 24AWG, 2m

Produktnummer: 889P-F3ABPM-2
Produktstatus:


inkl. mva.

Patchcord: Pico (M8), Female, Straight, 3-Pin, PVC Cable, Yellow, Unshielded, IEC Color Coded, Pico, Male, Straight, 2 meter (6.56 feet)

Pico Cable, Female, Straight (Int Threads), Female, Straight (int threads), Standard Materials, 3-Pins, 3-Pins, Pico, Male, Straight (ext.threads), Straight, Male(Ext. Threads), Pico (M8), Same as First End, PVC Cbl, Yellow, UnShld, 24AWG, PVC Cable, Yellow, 24AWG, Patchcord, Standard, 2 m

Egenskaper for produkt/familie

  • Offers a one-piece molded body design
  • Offers red cable jackets to identify safety networks on your machines
  • Includes 12-pin/11-conductor on 19-pin for passive distribution and other box applications
  • Includes nickel-plated brass coupling nuts on Pico (M8)
  • Provides highly visible yellow polyvinylchloride (PVC) jacket which resists oil and chemicals
  • Includes epoxy-coated zinc coupling nuts which provide durability
  • Includes ratcheting coupling nut which resists vibration
  • Includes general purpose 18 AWG cables
  • Provides heavy-duty re-enforcing braiding used as a grounded shield reduces noise
  • Includes 12-pin configuration for SafeShield™ light curtains and other applications
  • Includes ratcheting coupling nut for added vibration resistance
  • Includes patchcords: Cable with integral connector at each end (one male, one female)
  • Includes cordsets: Cable with integral female connector at one end and flying leads at the other
  • Includes heavy duty STOOW 16 AWG cables
  • Provides highly visible yellow polyvinylchloride (PVC) jacket resists oil and chemicals
Spesifikasjoner
Standard or Build-to-Order Cable Length 2 meters (6.56 feet)
Units Meters
Hardware Material Nickel Plated Brass - Female End / Epoxy coated Zinc - Male End
Special Characteristics Standard
Female End Termination Pico (M8)
Number of Pins 3-Pin
Female Connector Style Female, Straight
Male Connector Style Male, Straight
Number of Pins Same as Female End
Male End Termination Pico (M8)
Cable Color Code IEC Standard Color Code (European)
Wire Size 24AWG
Cable Type PVC Cable, Yellow, Unshielded
Pin Layout (Female End) Pinout:
Pin Layout (Male End) Pinout:
Opprinnelsesland CN
Tolltariffnummer 85444290
Lengde 15.494
Høyde 2.388
Livssyklus Active
