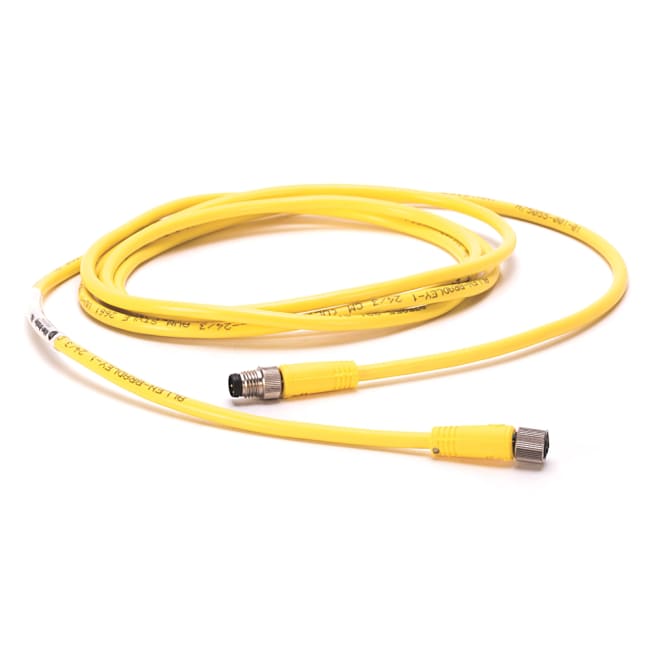

M8 kabel, 3-pin, hunn-hann, Gul, Uskjermet, 24AWG, 10m
Produktnummer: 889P-F3ABPM-10
Produktstatus:
inkl. mva.
Patchcord: Pico (M8), Female, Straight, 3-Pin, PVC Cable, Yellow, Unshielded, IEC Color Coded, Pico, Male, Straight, 10 meter (32.8 feet)
Pico Cable, Female, Straight (Int Threads), Female, Straight (int threads), Standard Materials, 3-Pins, 3-Pins, Pico, Male, Straight (ext.threads), Straight, Male(Ext. Threads), Pico (M8), Same as First End, PVC Cbl, Yellow, UnShld, 24AWG, PVC Cable, Yellow, 24AWG, Patchcord, Standard, 10 m
| Spesifikasjoner | |
|---|---|
| Standard or Build-to-Order Cable Length | 10 meters (32.8 feet) |
| Units | Meters |
| Cable Color Code | IEC Standard Color Code (European) |
| Wire Size | 24AWG |
| Cable Type | PVC Cable, Yellow, Unshielded |
| Male End Termination | Pico (M8) |
| Male Connector Style | Male, Straight |
| Number of Pins | Same as Female End |
| Pin Layout (Male End) | Pinout: |
| Pin Layout (Female End) | Pinout: |
| Special Characteristics | Standard |
| Hardware Material | Nickel Plated Brass - Female End / Epoxy coated Zinc - Male End |
| Female Connector Style | Female, Straight |
| Number of Pins | 3-Pin |
| Female End Termination | Pico (M8) |
| Opprinnelsesland | CN |
| Tolltariffnummer | 85444290 |
| Lengde | 18.001 |
| Høyde | 3.0 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 889-td002_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
3-Dimensional STEP model (STP) Filnavn: 889P-F3ABPM-2 Filtype: application/x-zip-compressed |
Last ned | |
|
2-Dimensional Drawing (DWG/DXF) Filnavn: 889P-F3ABPM-2.dxf Filtype: image/vnd.dxf |
Last ned | |
|
2-Dimensional Drawing (PDF) Filnavn: 889P-F3ABPM-2.pdf Filtype: application/pdf |
Last ned |
